Components With Torque Specifications

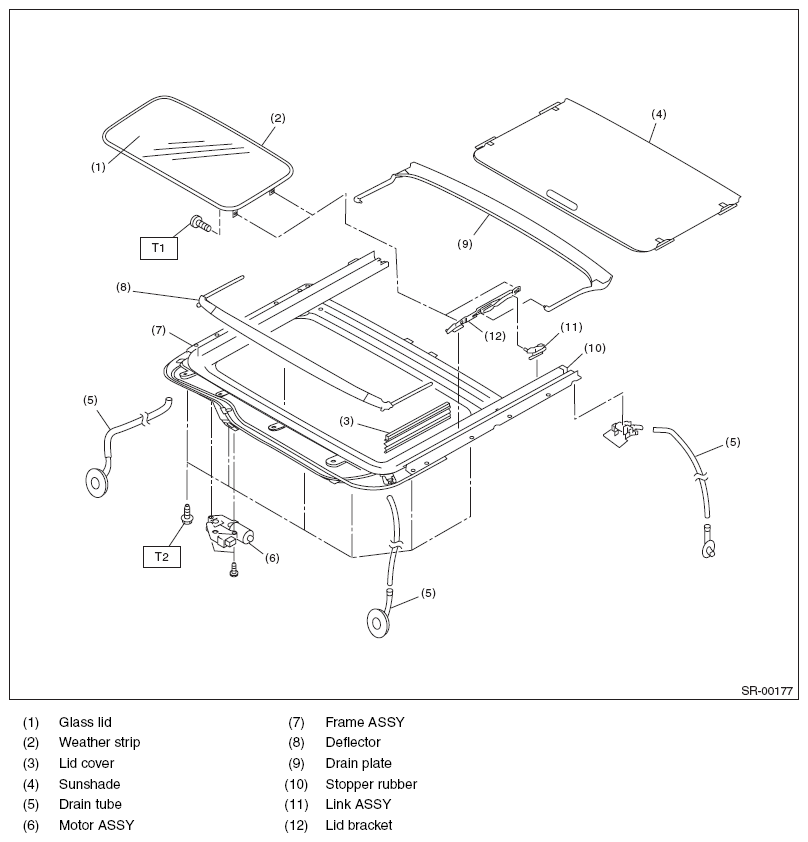

Fig 1: Exploded View Of Sunroof/T-Top/Convertible Top Sunroof

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.5 (0.46, 3.3)

T2: 6.0 (0.61, 4.4)
