Oil Level Switch: Installation

Install the oil level switch to the cylinder block lower.
NOTE:
- Use new O-rings.
- Apply a coat of engine oil to the O-rings.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

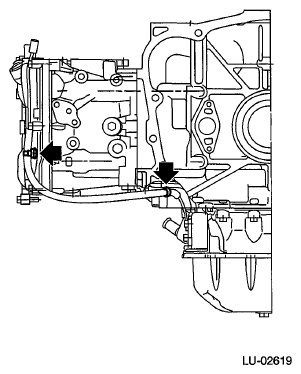

Fig 1: Locating Oil Level Switch Mounting Bolt (View 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Hold the oil level switch harness with the clip.
- Turbo model

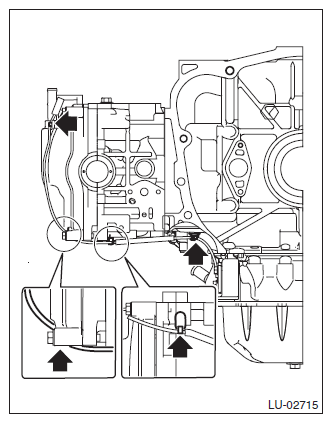

  Fig 2: Locating Oil Level Switch Harness Mounting Clip (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Non-turbo model

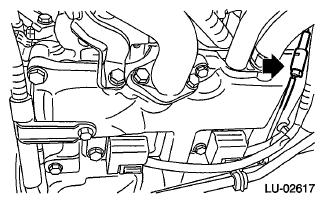

  Fig 3: Locating Oil Level Switch Harness Mounting Clip (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Connect the connector of the oil level switch to the engine harness.

Fig 4: Locating Oil Level Switch To Engine Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Refer to FRONT UNDER COVER .
Lower the vehicle.
Refill the engine oil. Refer to , REPLACEMENT , Engine Oil.
Check the engine oil level. Refer to , INSPECTION , Engine Oil.
Connect the battery ground terminal.

Fig 5: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
