Check Inhibitor Switch (At/CVT Model)
WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the inhibitor switch connector.

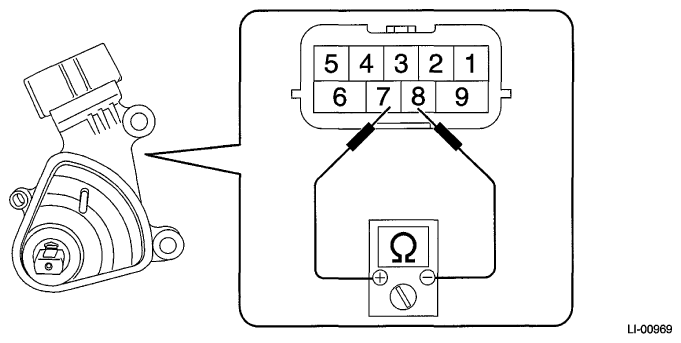

- Measure the resistance between inhibitor switch terminals.
Preparation tool: Circuit tester
Terminal No. Inspection conditions Specification 7 - 8 When the selector lever is in the "R" range Less than 1 Ω Other positions 1 MΩ or more - Replace the inhibitor switch if the inspection result is not within the standard value.
