Fog Light Aiming

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Before checking the fog light beam level, be sure of the following:
- The area around the fog light has not sustained any accident, damage or other type of deformation.
- Vehicle is parked on a level surface.
- The inflation pressure of tires is correct.
- Vehicle's fuel tank is fully filled.
Bounce the vehicle several times to normalize the suspension.
Make certain that someone is seated in the driver's seat.
Place the vehicle with the front end facing to the measurement panel.

Fig 1: Identifying Distance Between Measurement Panel And Vehicle
Courtesy of SUBARU OF AMERICA, INC.

h mm (in) at 3 m (10 ft)

40 (1.58)
Adjust the fog light beam.
1. Remove the clips and turn over the front end of front mud guard.

  Fig 2: Locating Front Mud Guard Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Adjust the beam direction by turning the aiming screw from the bottom of front bumper face.

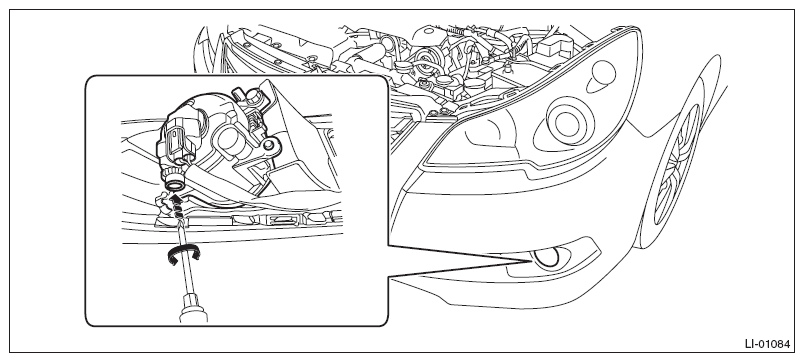

  Fig 3: Turning Aiming Screw
  Courtesy of SUBARU OF AMERICA, INC.
