Front Fog Light Assembly: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the clips and turn over the front end of front mud guard.

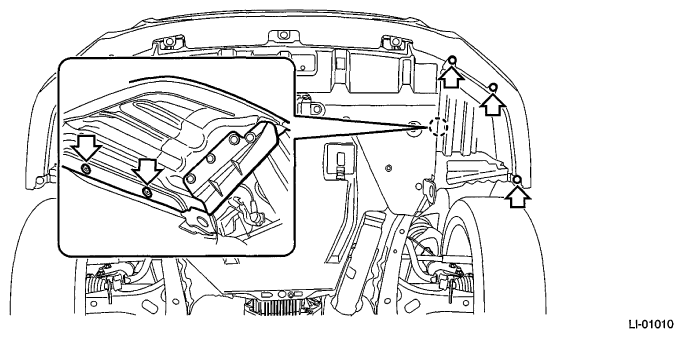

Fig 1: Locating Front Mud Guard Clips
Courtesy of SUBARU OF AMERICA, INC.
From the bottom of bumper face, remove the front fog light assembly.
1. Disconnect the connector.
2. Remove the bolts, and remove the front fog light assembly.

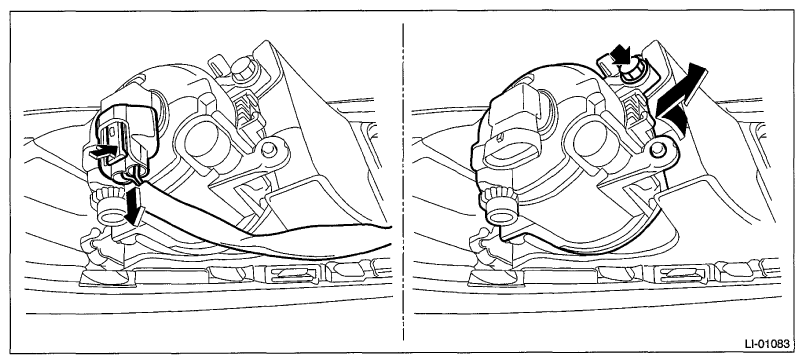

  Fig 2: Removing Front Fog Light Assembly And Connector
  Courtesy of SUBARU OF AMERICA, INC.
