Check Trunk Lid Latch Switch
WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

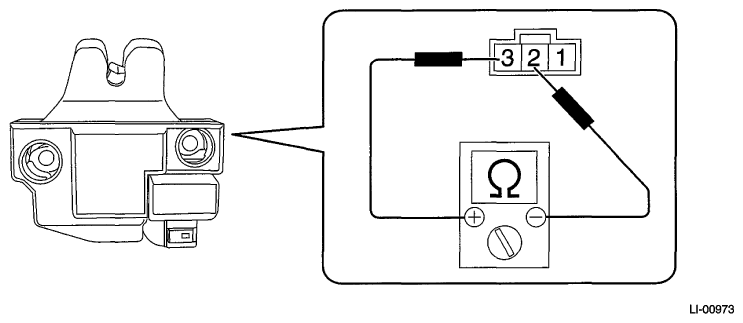

- Disconnect the trunk lid latch switch connector.
- Measure the resistance between trunk lid latch switch terminals.
Preparation tool: Circuit tester
Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Inspection conditions Specification 2 - 3 When trunk lid is opened Less than 1 Ω When trunk lid is closed 1 MΩ or more - If the inspection result is not within the standard value, replace the trunk lid latch and actuator assembly.
