Outback Model

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the screws and remove the license plate light.

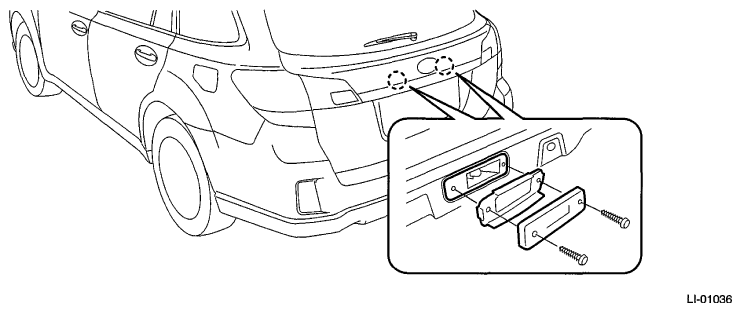

    Fig 1: Identifying License Plate Light With Screws
    G06653485Courtesy of SUBARU OF AMERICA, INC.
NOTE: When removing the license plate light assembly harness, remove the following parts.
