Outback Model

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the clips and detach the rear combination light covers.

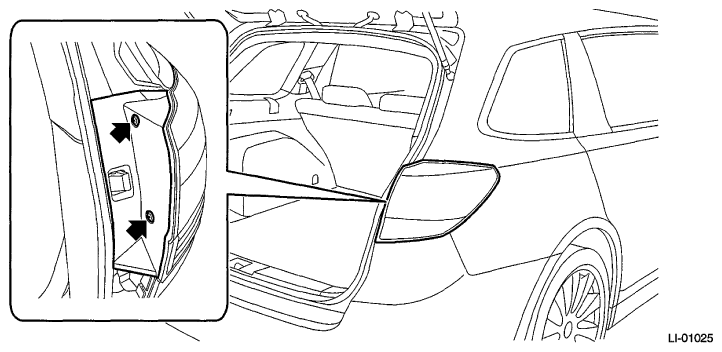

    Fig 1: Locating Rear Combination Light Covers Clips
    G06653461Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the rear combination light assembly.
    CAUTION: Be careful not to damage the clips.
    1. Release the bolts and clips, then pull out the rear combination light assembly to the vehicle rear.
    2. Disconnect the connector and remove the rear combination light assembly.

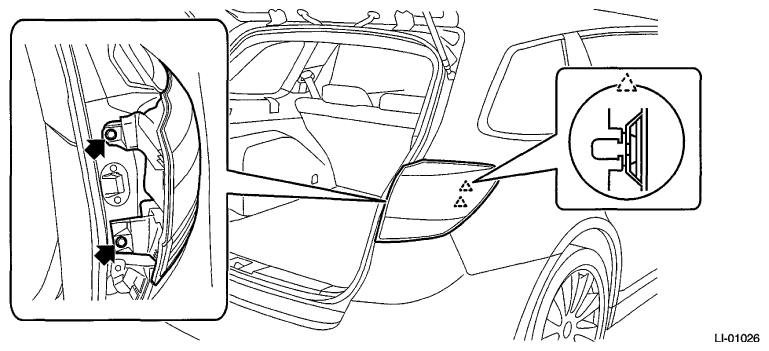

      Fig 2: Locating Rear Combination Light Assembly Bolts And Clips
      G06653462Courtesy of SUBARU OF AMERICA, INC.
