Sedan Model

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the trunk room trim. Refer to TRUNK ROOM TRIM .
  3. Remove the rear combination light assembly.
    1. Disconnect the connector.
    2. Release the nuts and clips, then remove the rear combination light assembly.
    CAUTION: Be careful not to damage the clips.

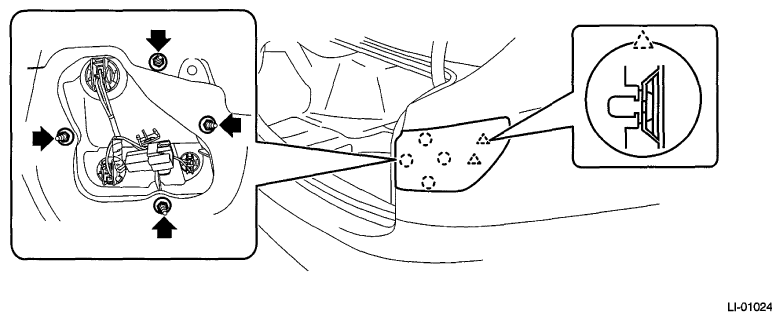

    Fig 1: Locating Rear Combination Light Assembly Nuts And Clips
    G06653460Courtesy of SUBARU OF AMERICA, INC.
