Reflex Reflector: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

From behind the bumper, release the claws and remove the reflex reflector.

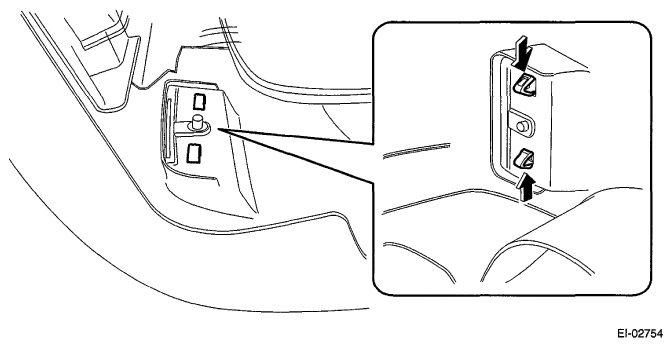

Fig 1: Locating Reflex Reflector Claws
G06653508Courtesy of SUBARU OF AMERICA, INC.
