Spot Map Light Switch
WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the overhead console assembly.

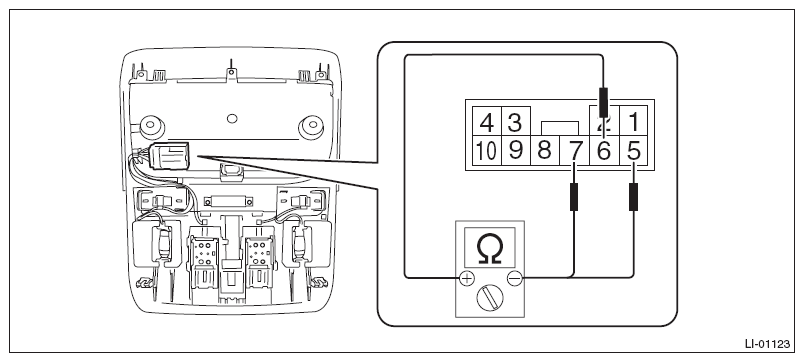

- Measure the resistance between spot map light switch terminals.
Preparation tool: Circuit tester
Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Inspection Conditions Specification - Switch OFF 1 MΩ or more 6 - 5 Switch ON Less than 1 Ω 6 - 7 Switch door Less than 1 Ω - Replace the overhead console assembly if the inspection result is not within the standard value.
