Spot Map Light: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The spot map light is a single unit with the overhead console.

Disconnect the ground cable from battery.
Remove the overhead console assembly.
1. Push and open the rear end of the overhead console lid, and remove the screws.
2. Remove the clips and pull out the overhead console to disconnect the connectors.

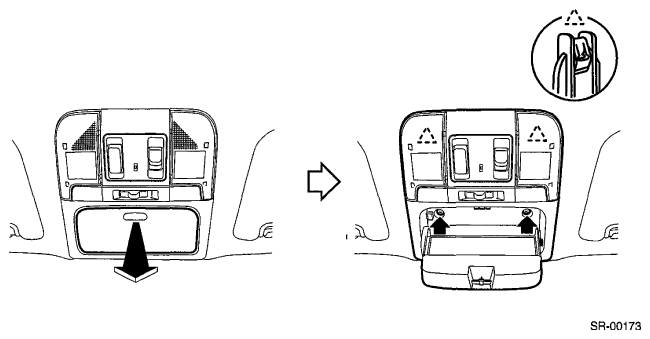

  Fig 1: Pulling Out Overhead Console
  Courtesy of SUBARU OF AMERICA, INC.
Release the claws, then detach the spot map light cover and bulb.

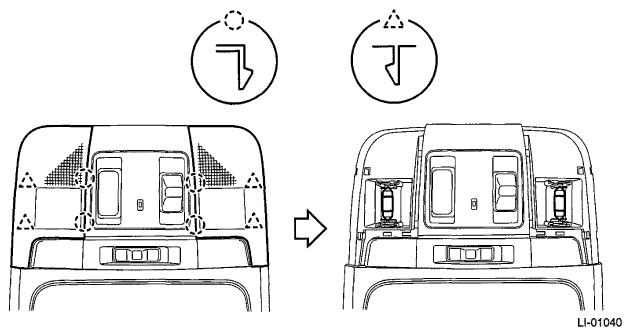

Fig 2: Identifying Spot Map Light Cover Claws
Courtesy of SUBARU OF AMERICA, INC.
