Components With Torque Specifications

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

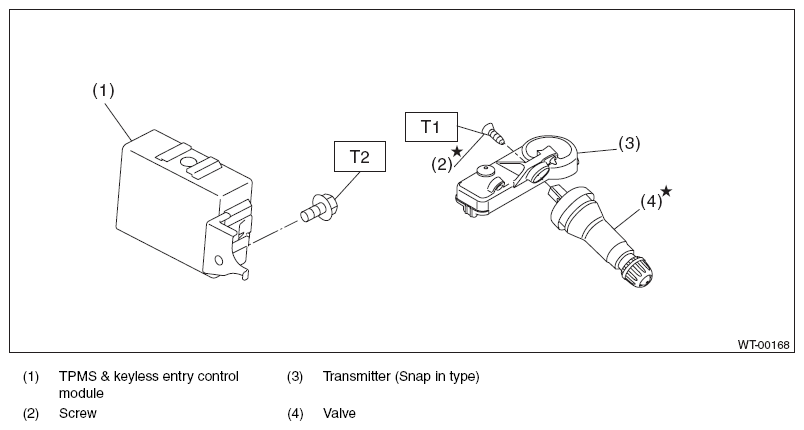

Fig 1: Tire Inflation Pressure Monitor Control Module, Screw, Valve And Transmitter With Torque Specification
G07914036Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.4 (0.14, 1.0)

T2: 7.5 (0.76, 5.5)
