Operating condition: Notes

WARNING: This page is about a different variant/trim than selected.

Radiator fan operates depending on the radiator fan operation mode related to engine coolant temperature or the radiator fan operation mode related to A/C compressor load, whichever is higher as an operation mode.

Radiator fan operation mode related to engine coolant temperature

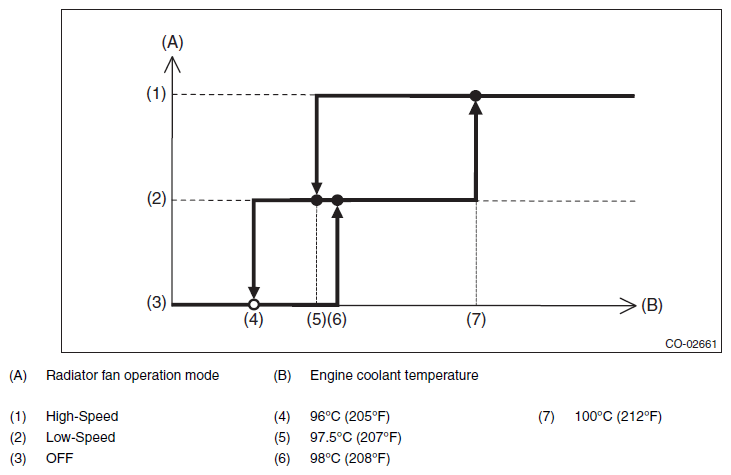

Fig 1: Identifying Curve Between Radiator Fan Operation Mode And Engine Coolant Temperature
Courtesy of SUBARU OF AMERICA, INC.
Radiator fan operation mode related to A/C compressor load

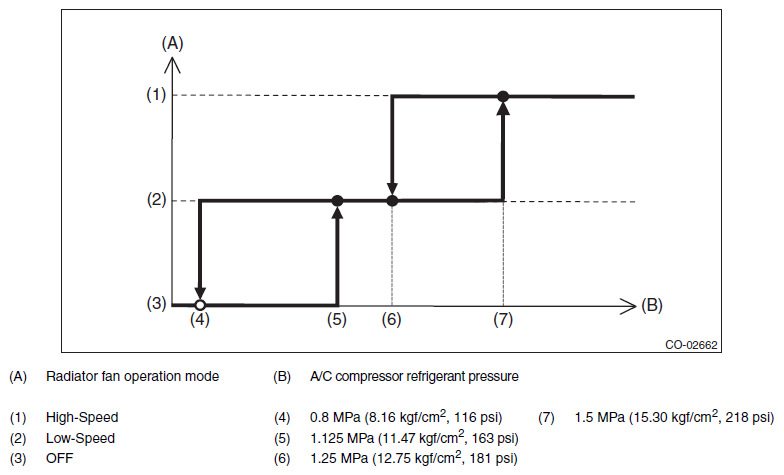

Fig 2: Identifying Curve Between Radiator Fan Operation Mode And A/C Compressor Loads
Courtesy of SUBARU OF AMERICA, INC.
