Inspection

Subaru Select Monitor

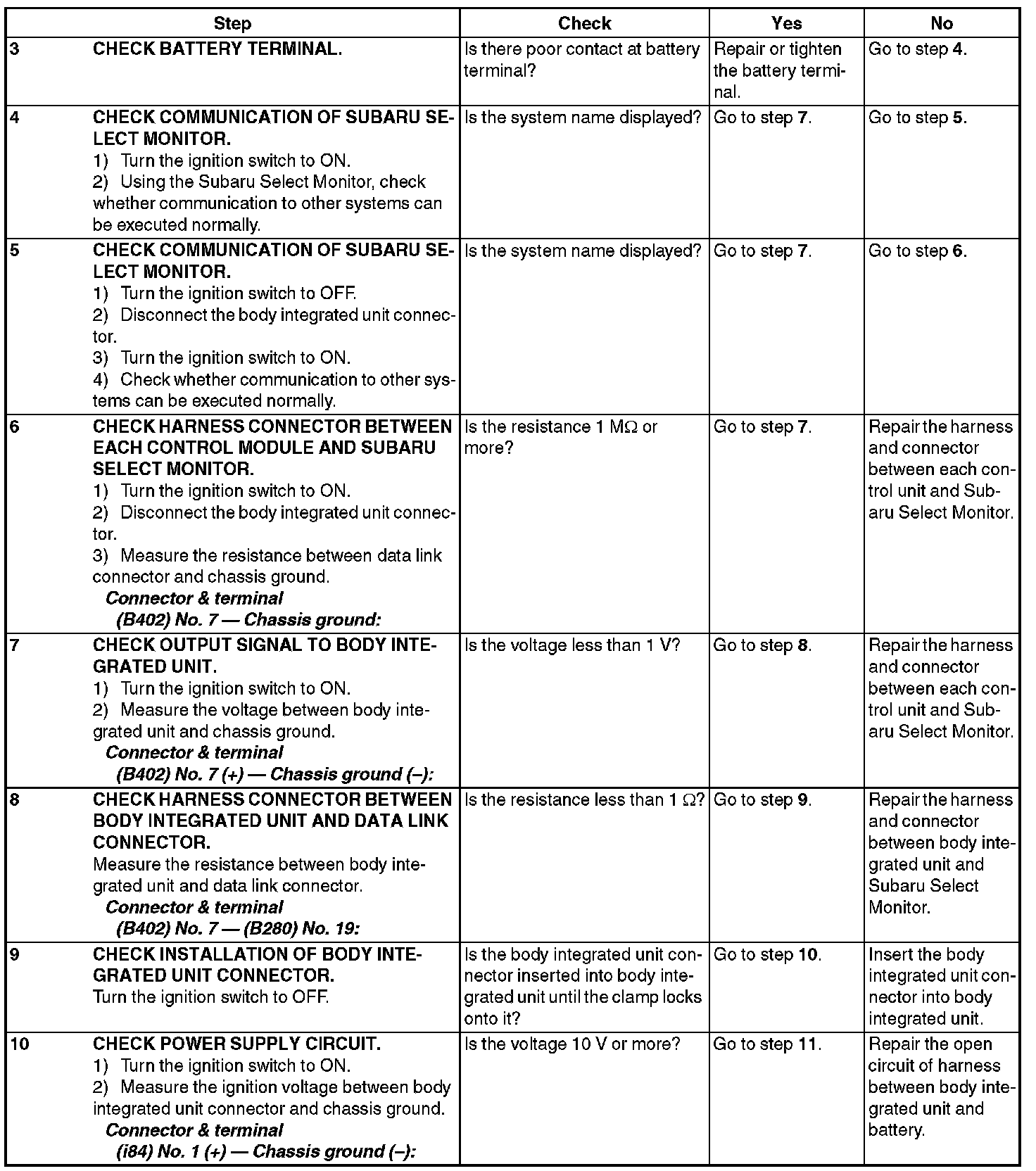

INSPECTION

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DETECTING CONDITION:
Defective harness connector

TROUBLE SYMPTOM:
Not communicable with Subaru Select Monitor.

WIRING DIAGRAM:

















CAUTION: When replacing body integrated unit on the model with immobilizer system, refer to the "PC application help for Subaru Select Monitor"
