Power Locks: Testing and Inspection

DOOR LOCK CONTROL SYSTEM

INSPECTION

SYMPTOM CHART

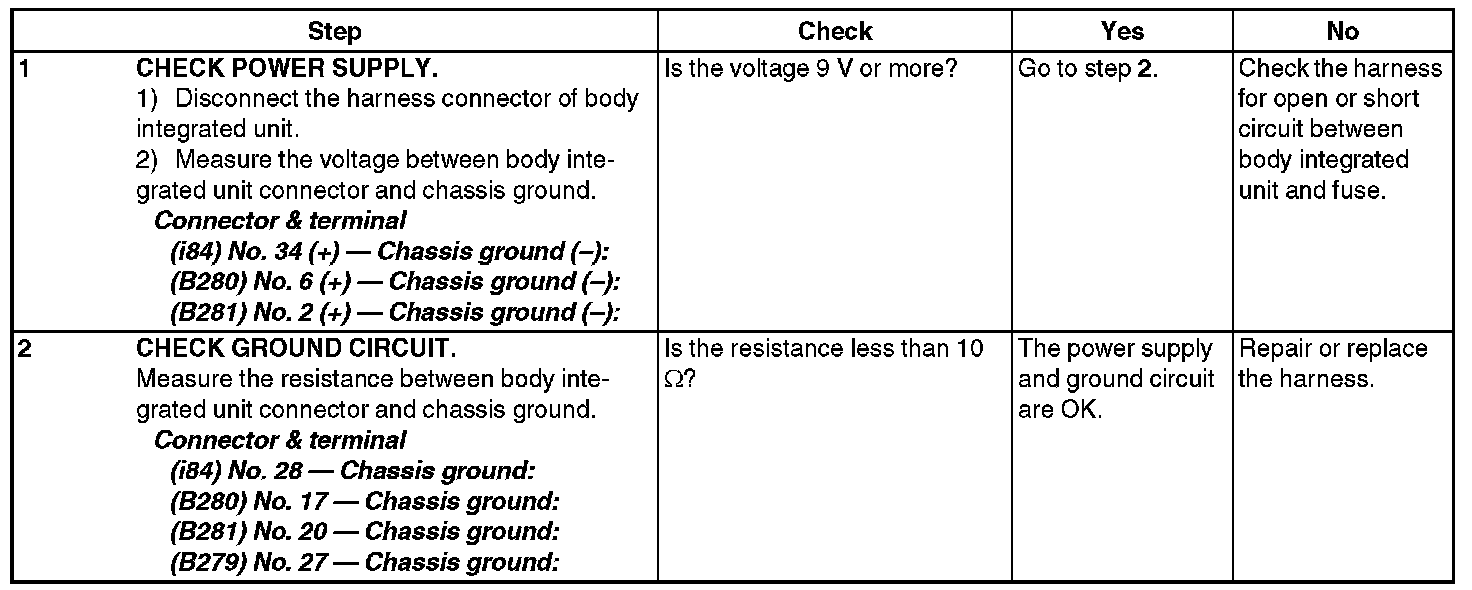

CHECK POWER SUPPLY & GROUND CIRCUIT

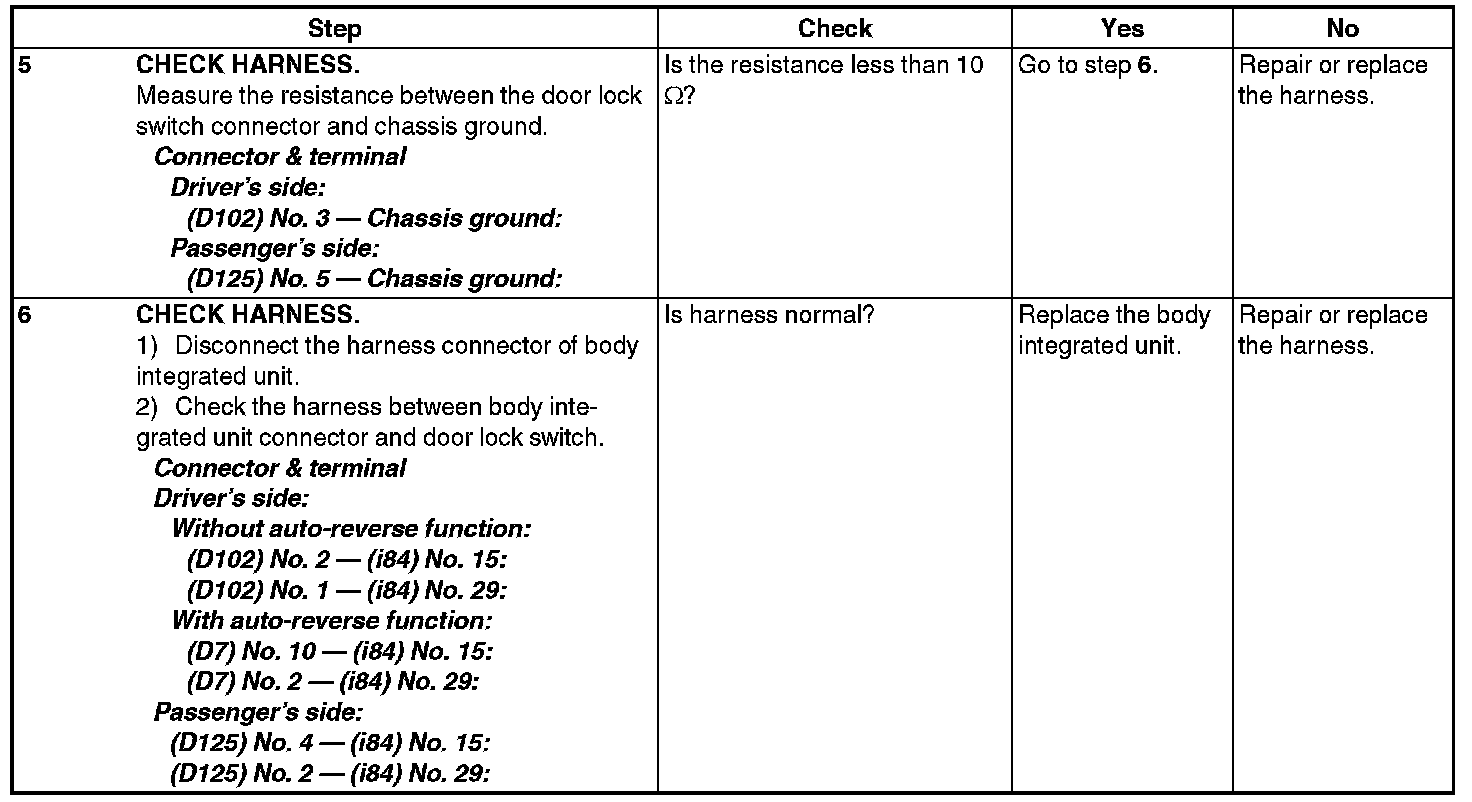

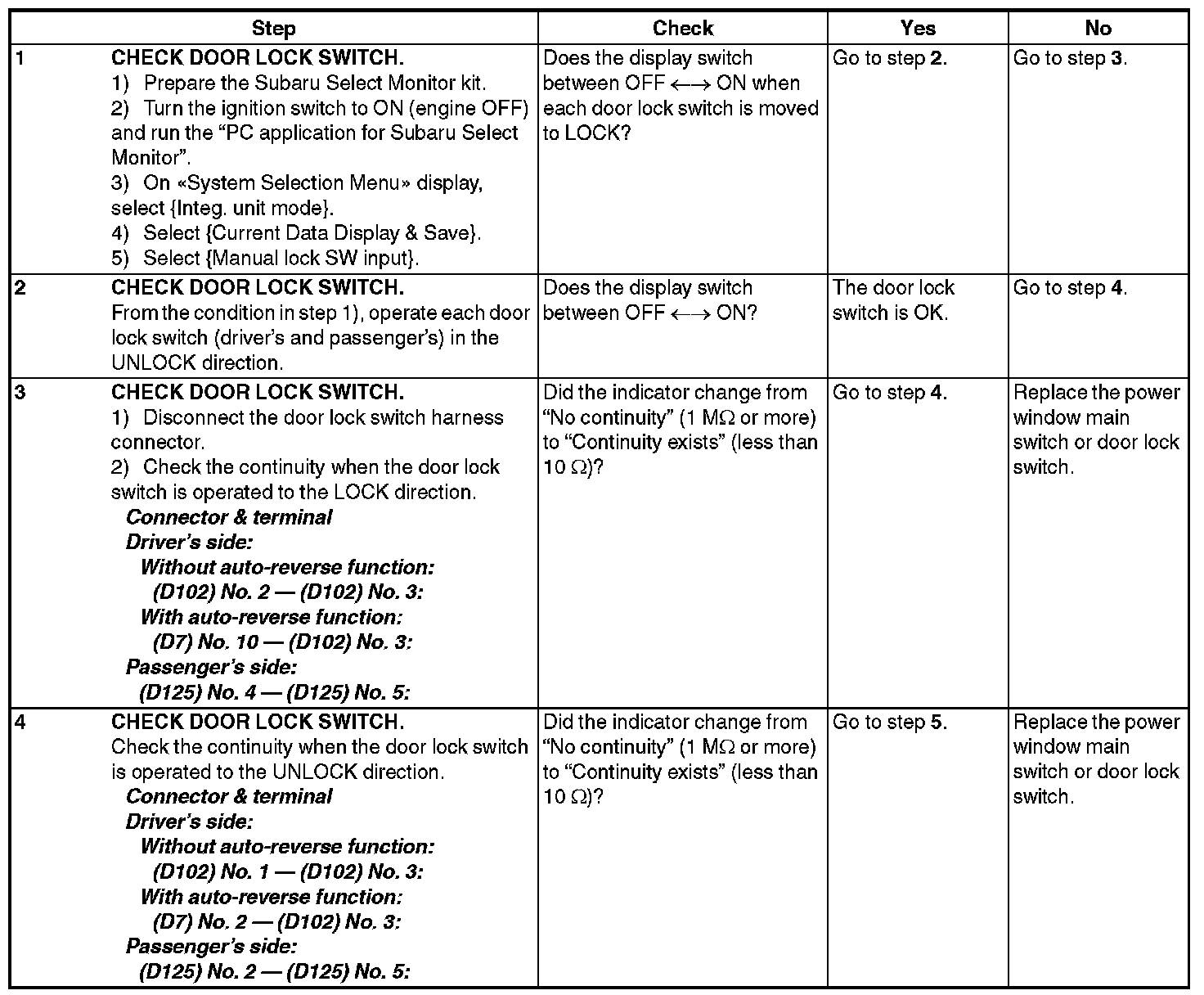

CHECK DOOR LOCK SWITCH

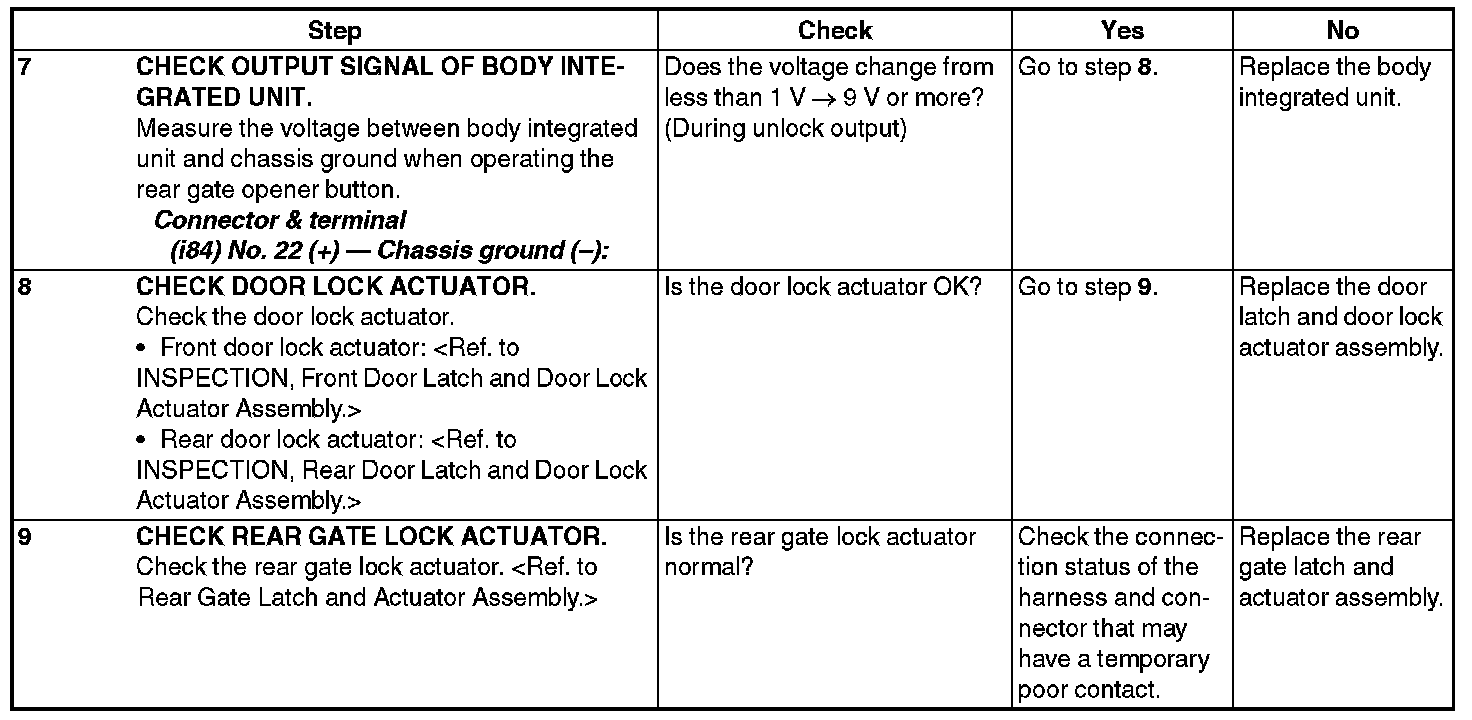

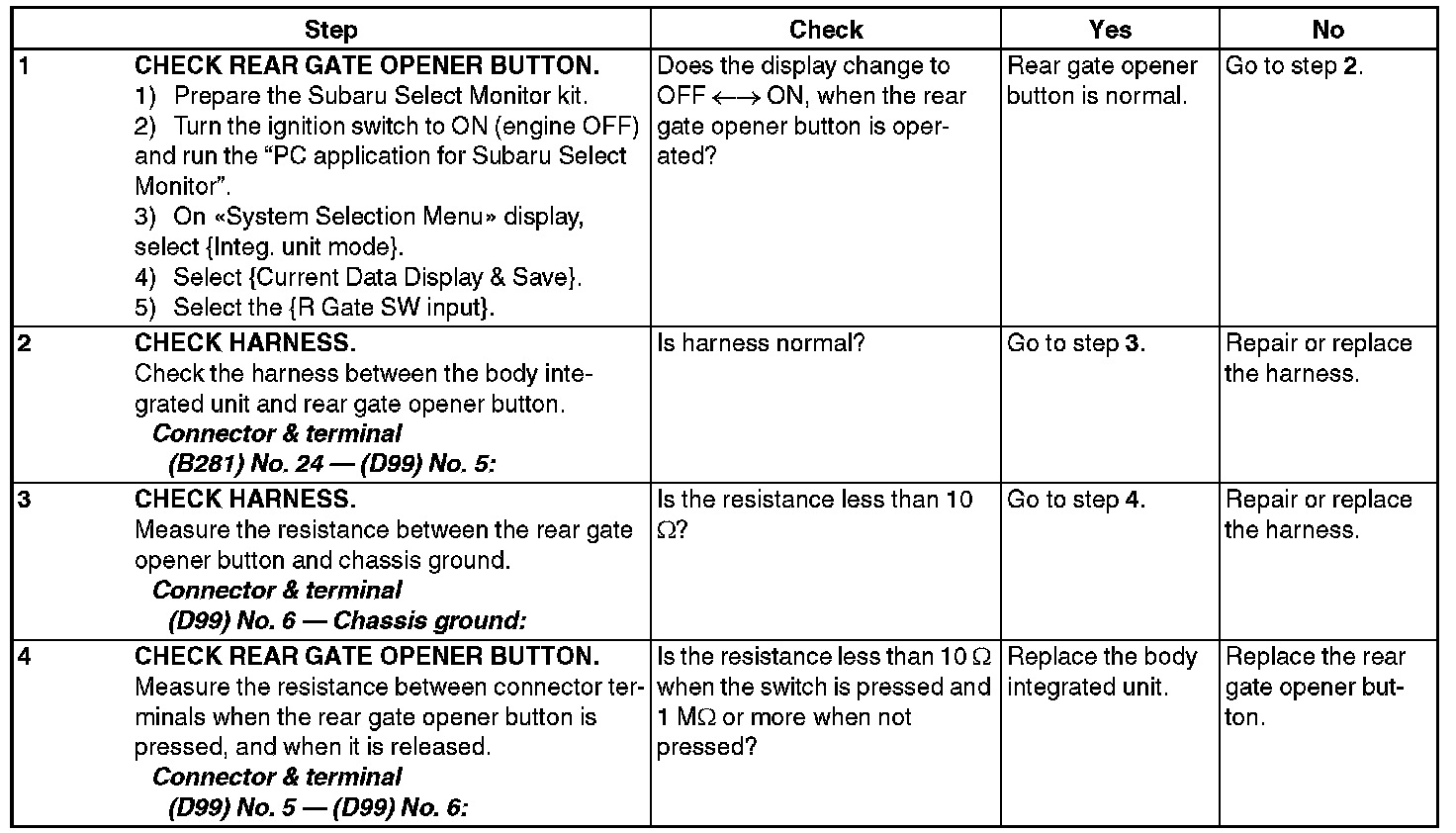

CHECK REAR GATE OPENER BUTTON CIRCUIT

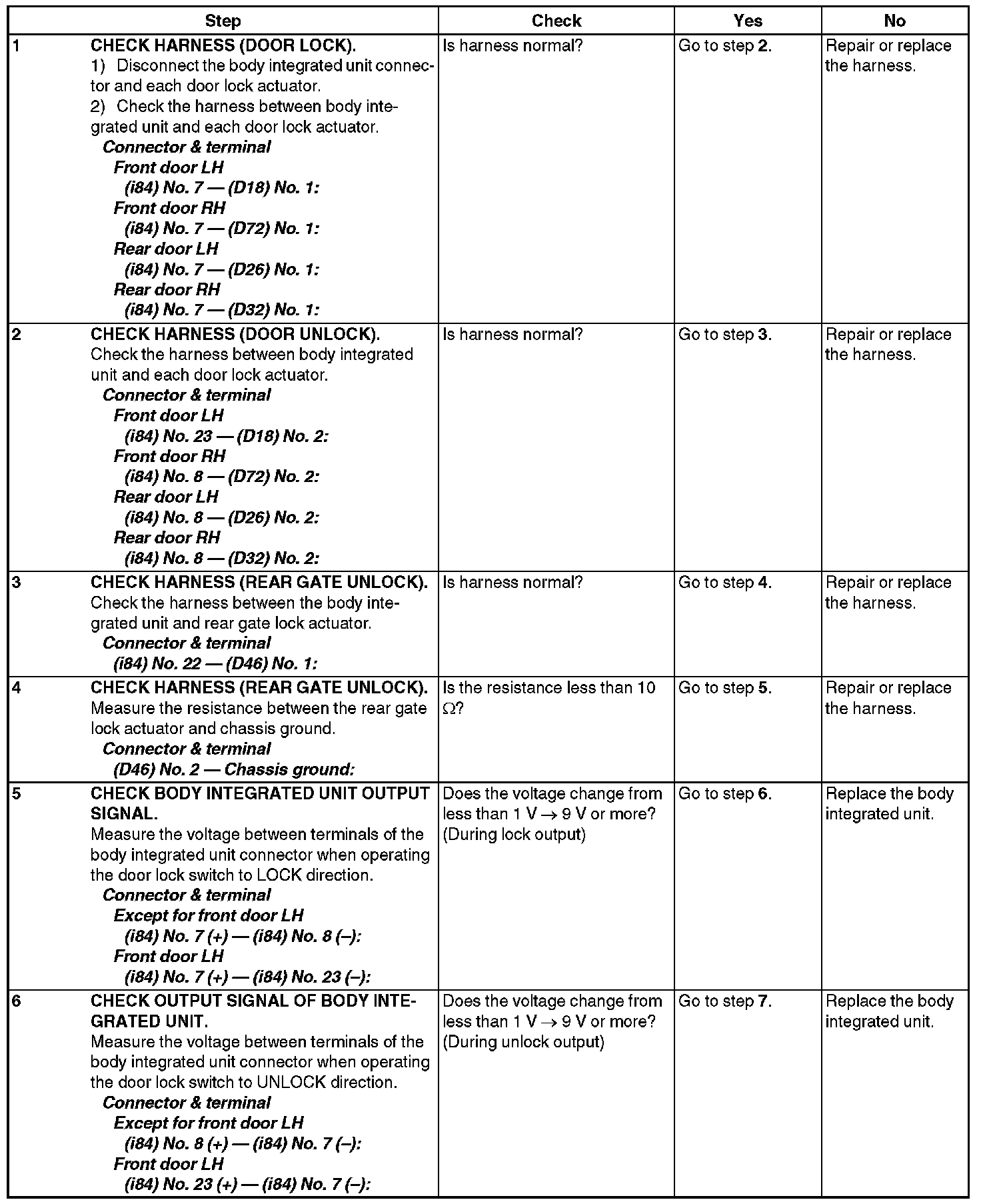

CHECK DOOR LOCK ACTUATOR & CIRCUIT
