Keyless Entry Control Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the left rear quarter trim. < Ref. to REMOVAL , Rear Quarter Trim . >
  3. Disconnect the keyless entry control module harness connector.
  4. Remove the bolt and then remove the keyless entry control module.

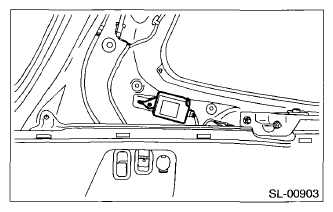

    Fig 1: Bolt And Keyless Entry Control Module
    G07666542Courtesy of SUBARU OF AMERICA, INC.
