Turbo Model

CAUTION: Check and adjust the front side belt tension. < Ref. to FRONT SIDE BELT , INSPECTION, V-belt. >

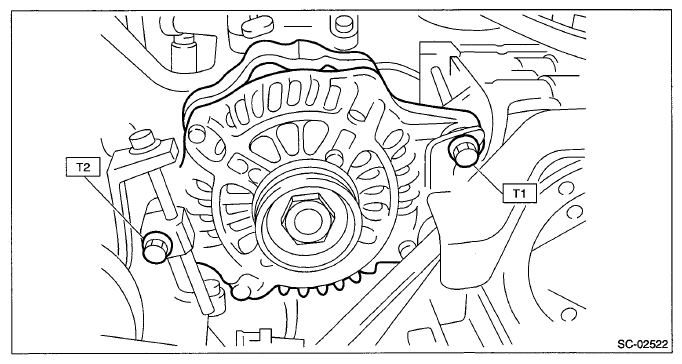

Install the generator to the bracket.
Tightening torque:

T1: 22 N.m (2.2 kgf-m, 16.2 ft-lb)

T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 1: Identifying Generator Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the front side belt. < Ref. to FRONT SIDE BELT , INSTALLATION, V-belt. >

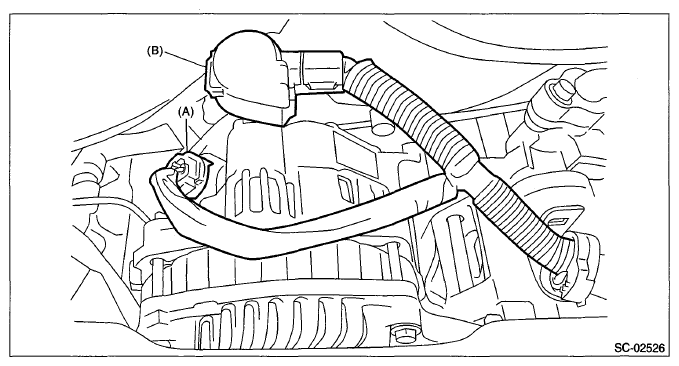

Connect the connector (A) and terminal (B) to the generator.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Fig 2: Identifying Generator Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.

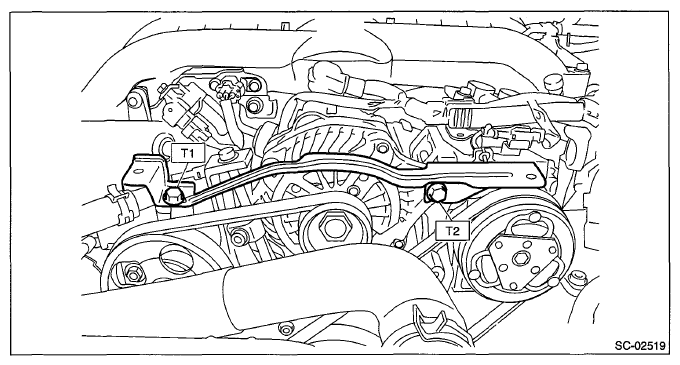

Install the collector cover bracket.
Tightening torque:

T1: 8.5 N.m (0.9 kgf-m, 6.3 ft-lb)

T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 3: Identifying Collector Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.

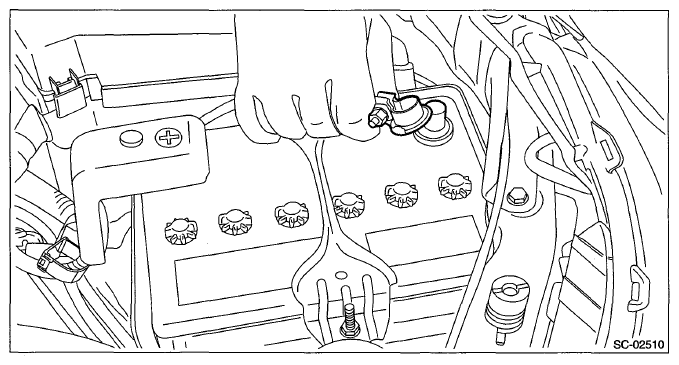

Connect the battery ground terminal.

Fig 4: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover.
