Non-Turbo Model

Remove the V-belt covers.

Fig 1: Locating V-Belt Cover Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery.

Fig 2: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belts. < Ref. to REMOVAL , V-belt. >
Remove the V-belt cover bracket.

Fig 3: Locating V-Belt Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) and terminal (B) from the generator.

Fig 4: Identifying Generator Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the idler pulley from the chain cover.

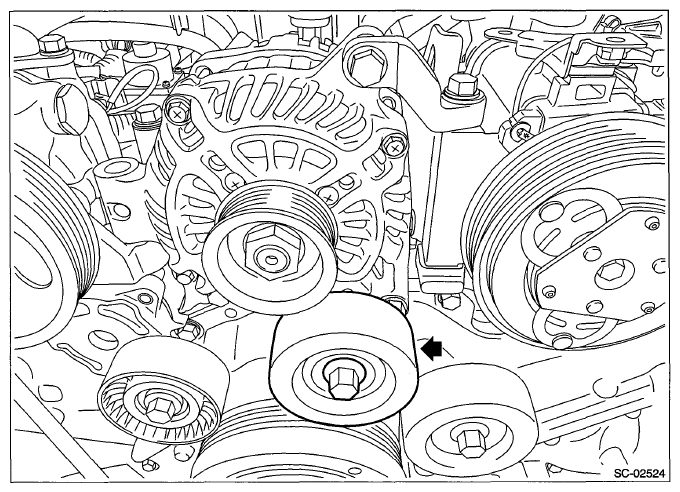

Fig 5: Locating Idler Pulley Of Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator from the bracket.

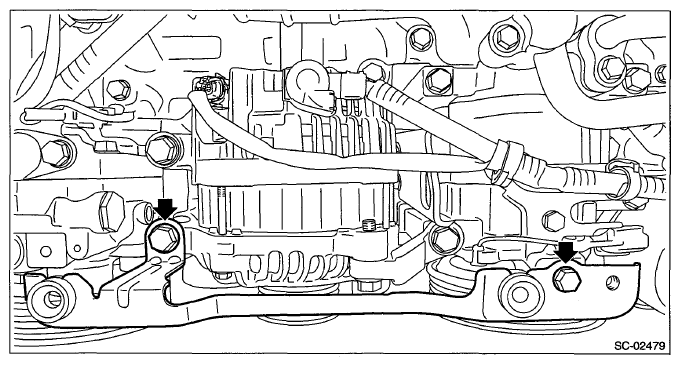

Fig 6: Locating Generator Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator bracket from the generator.
