Turbo Model

Remove the collector cover.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the collector cover bracket.

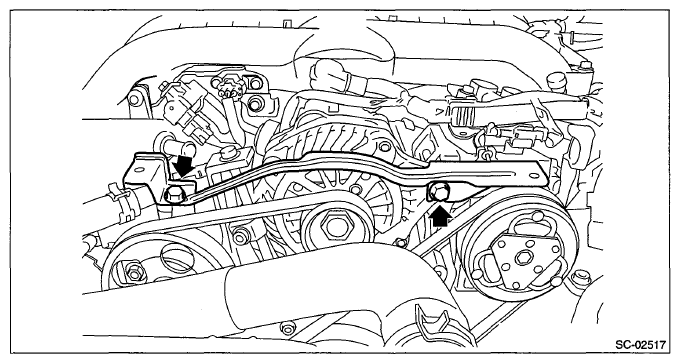

Fig 2: Locating Collector Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector (A) and terminal (B) from generator.

Fig 3: Identifying Generator Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the front side belts. < Ref. to FRONT SIDE BELT , REMOVAL, V-belt. >
Remove the generator from the bracket.

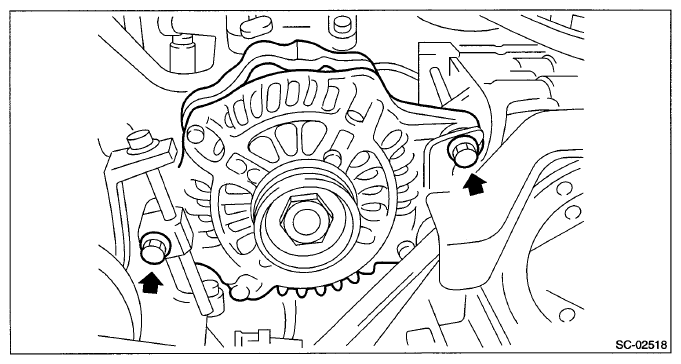

Fig 4: Locating Generator Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
