Control Module

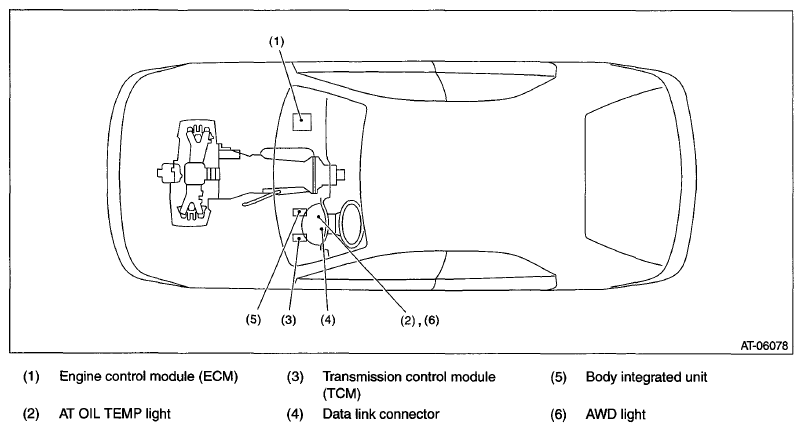

Fig 1: Control Module Components Location (1 Of 2)
G07665828Courtesy of SUBARU OF AMERICA, INC.

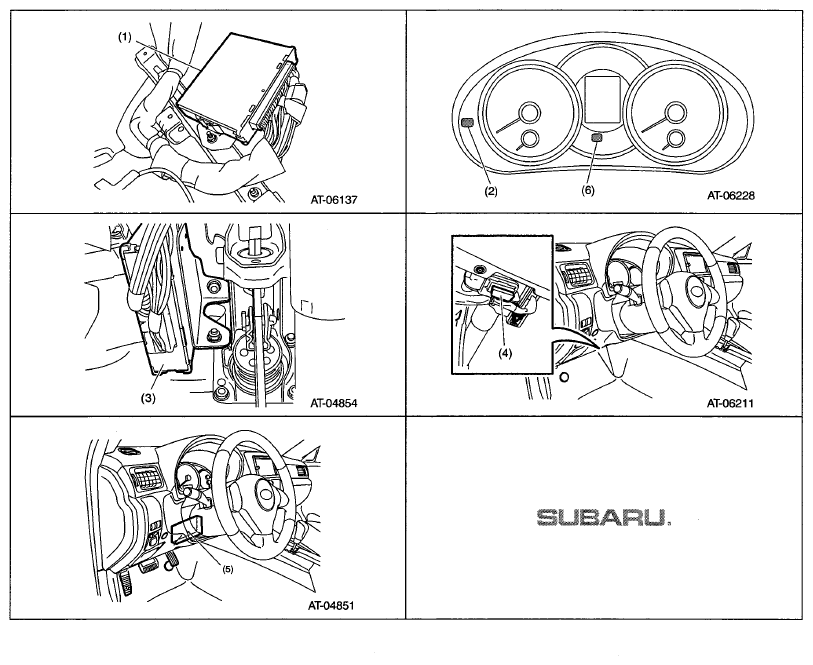

Fig 2: Control Module Components Location (2 Of 2)
G07665829Courtesy of SUBARU OF AMERICA, INC.
