Fuel Sub Level Sensor: Installation

Install in the reverse order of removal while being careful of the following.

Make sure the sealing portion is free from fuel or foreign matter before installation.
Align protrusion (A) of the gasket to the position shown in the figure.
Align protrusion (B) of the fuel sub level sensor to the cutout in the fuel sub level sensor upper plate.
Tighten the nuts and bolts to the specified torque in the order as shown in the figure.
After tightening, install the rubber cap (C) at the position shown in the figure.

NOTE:

Tightening torque:

4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

Fig 1: Identifying Fuel Sub Level Sensor Mounting Nuts And Bolts Tightening Order

Courtesy of SUBARU OF AMERICA, INC.

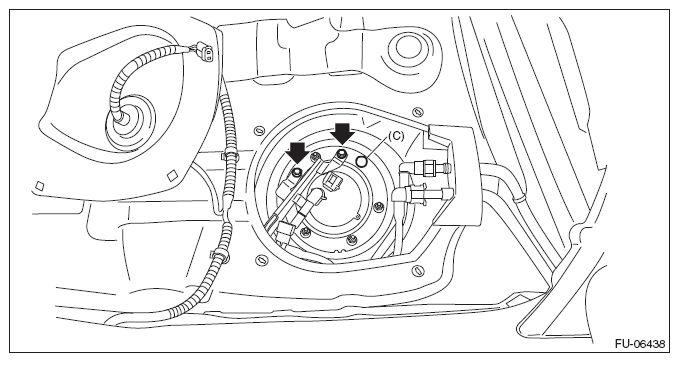

Fig 2: Locating Fuel Sub Level Sensor Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
When connecting the quick connector, make sure to insert the pipe all the way in before locking the slider.
When it is difficult to lock the slider, check that the pipe is fully inserted.
Make sure that the quick connector is securely connected.

Fig 3: Connecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
