Fuel Tank

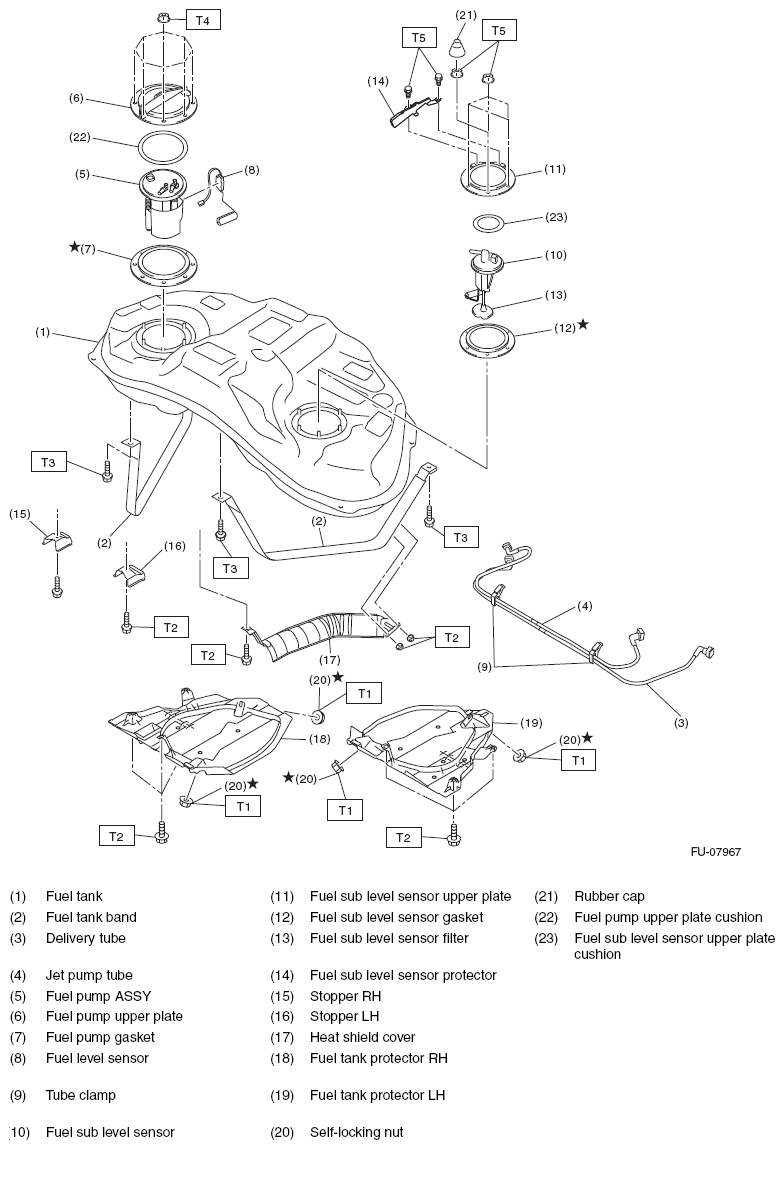

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 9 (0.9, 6.6)

T2: 18 (1.8, 13.3)

T3: Refer to  INSTALLATION  , Fuel Tank.

T4: Refer to  INSTALLATION  , Fuel Pump.

T5: Refer to  INSTALLATION  , Fuel Sub Level Sensor.
