Select Cable: Installation

Install the select cable to plate assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

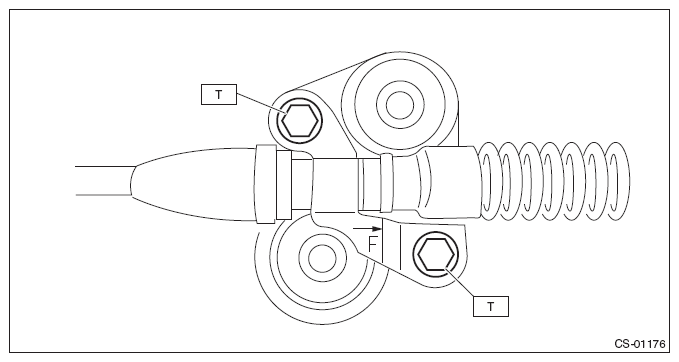

Fig 1: Plate Assembly Mounting Bolt With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly to transmission.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

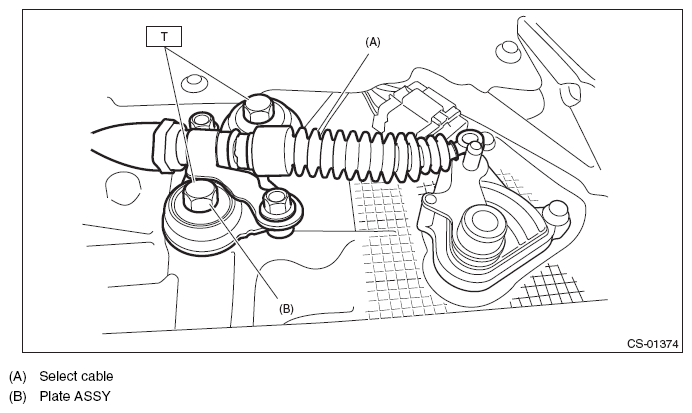

Fig 2: Select Cable And Plate Assembly Mounting Bolt With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.

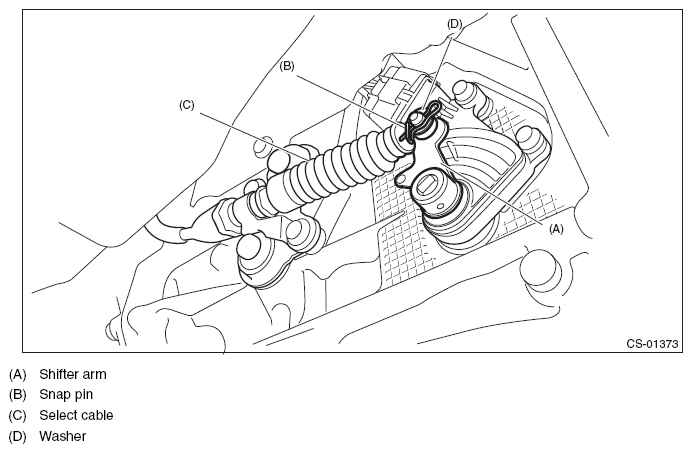

Fig 3: Identifying Shifter Arm, Snap Pin, Select Cable And Washer
Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

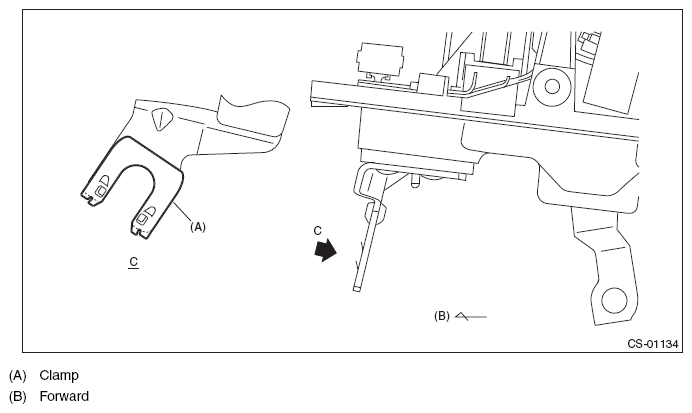

Fig 4: Identifying Clamp Installing Direction
Courtesy of SUBARU OF AMERICA, INC.

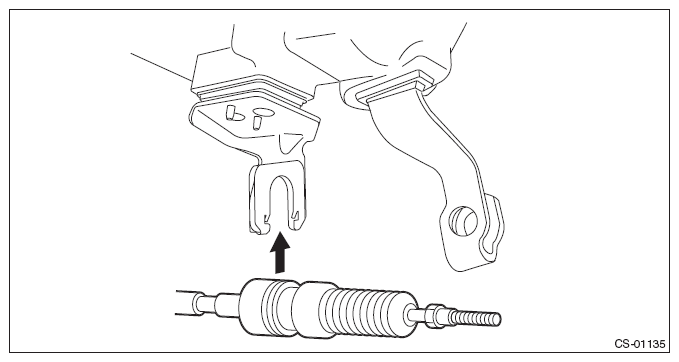

Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

Fig 5: Inserting Tip Of Inner Cable Into Connector Hole Of Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. Refer to ADJUSTMENT , Select Cable.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 6: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the front, center and rear exhaust pipe. Refer to INSTALLATION , Front Exhaust Pipe. Refer to INSTALLATION , Center Exhaust Pipe. Refer to INSTALLATION , Rear Exhaust Pipe.
