Cruise Control Switch: Testing and Inspection

Cruise Control Command Switch

INSPECTION

UNIT INSPECTION

PREPARATION TOOL:
Circuit tester

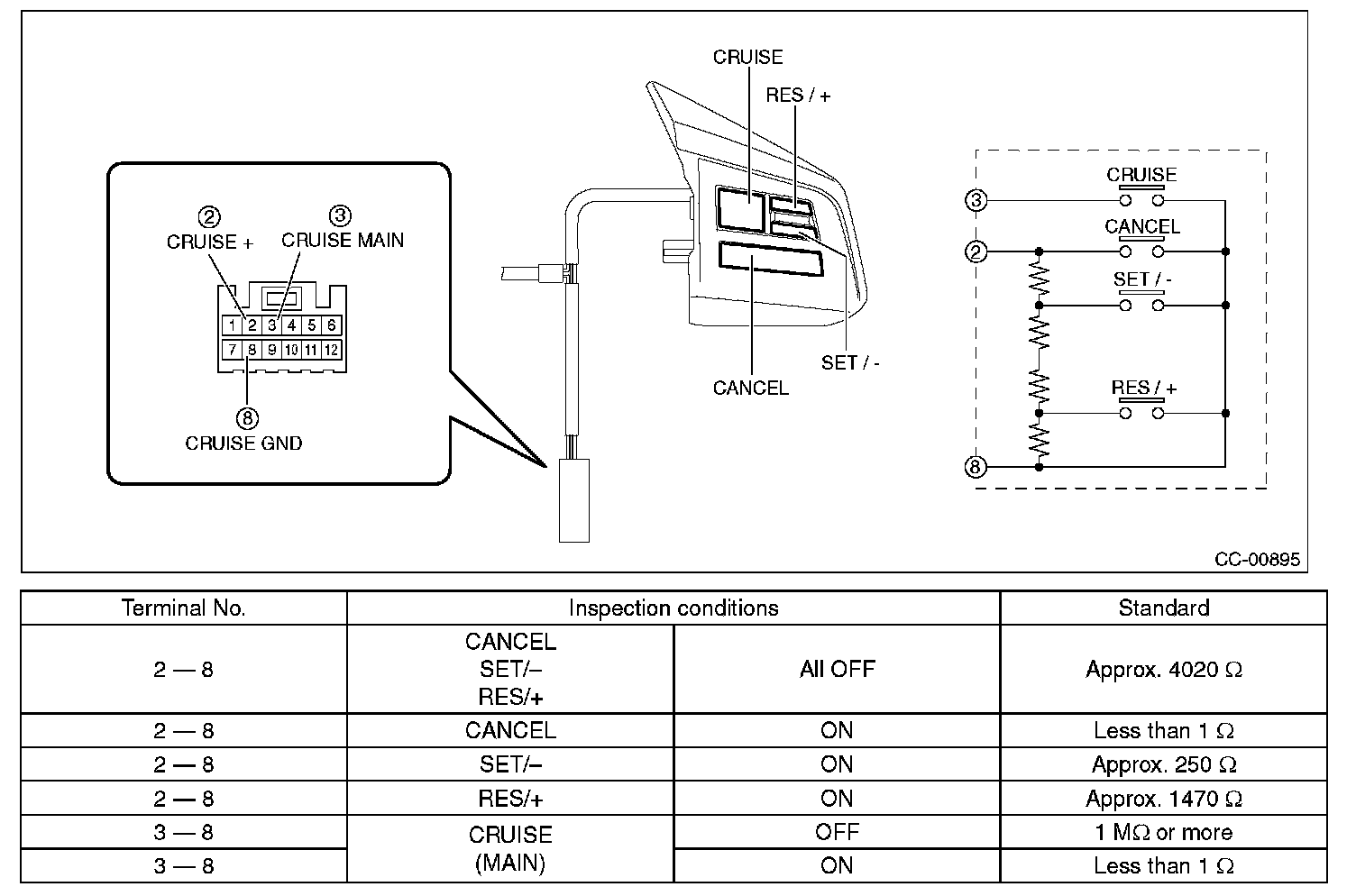

1. Check the resistance between switch terminals.






2. Replace the cruise control command switch assembly if the inspection result is not within the standard.
