Locks

General Description

COMPONENT

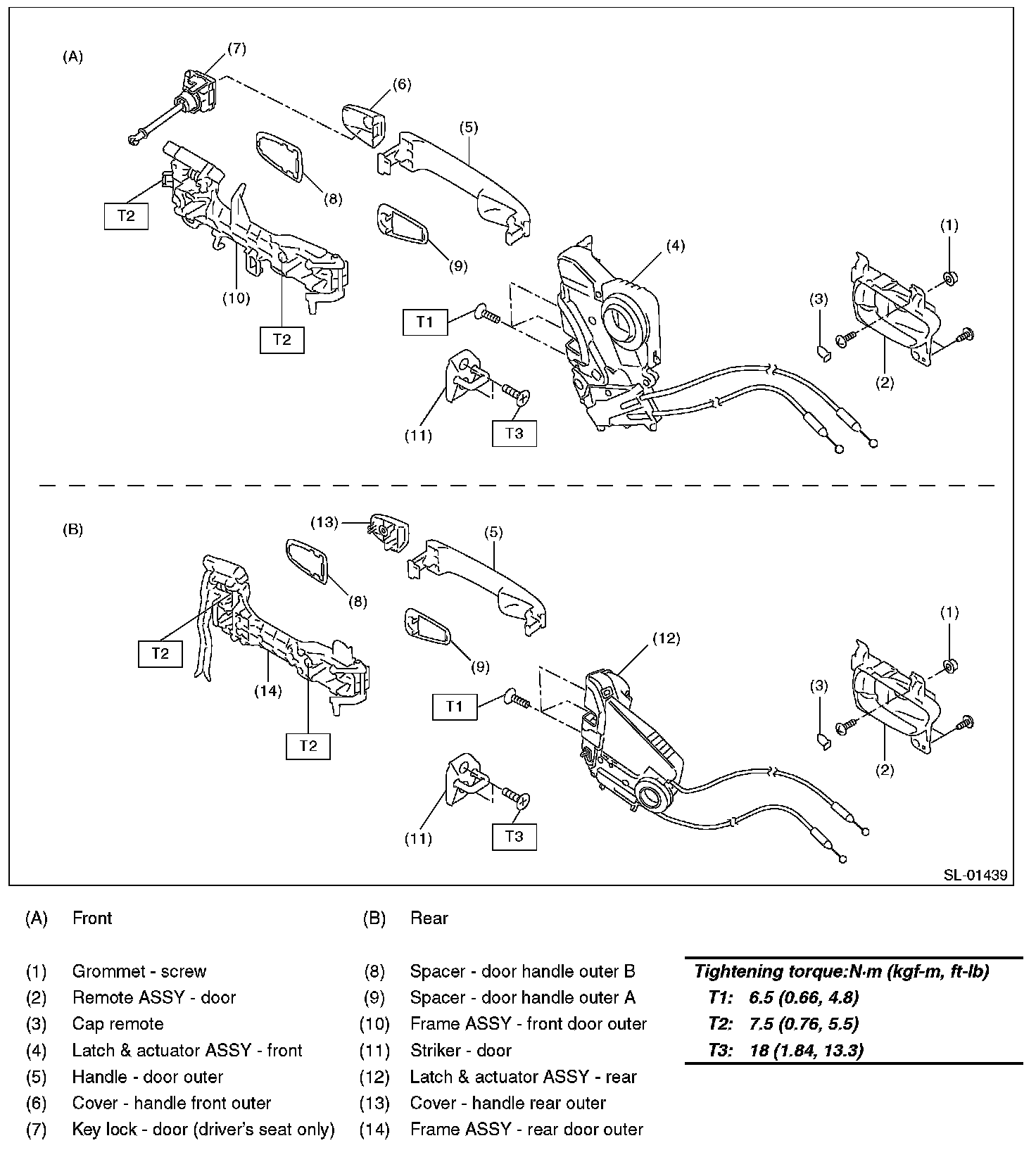

1. DOOR LOCK ASSEMBLY

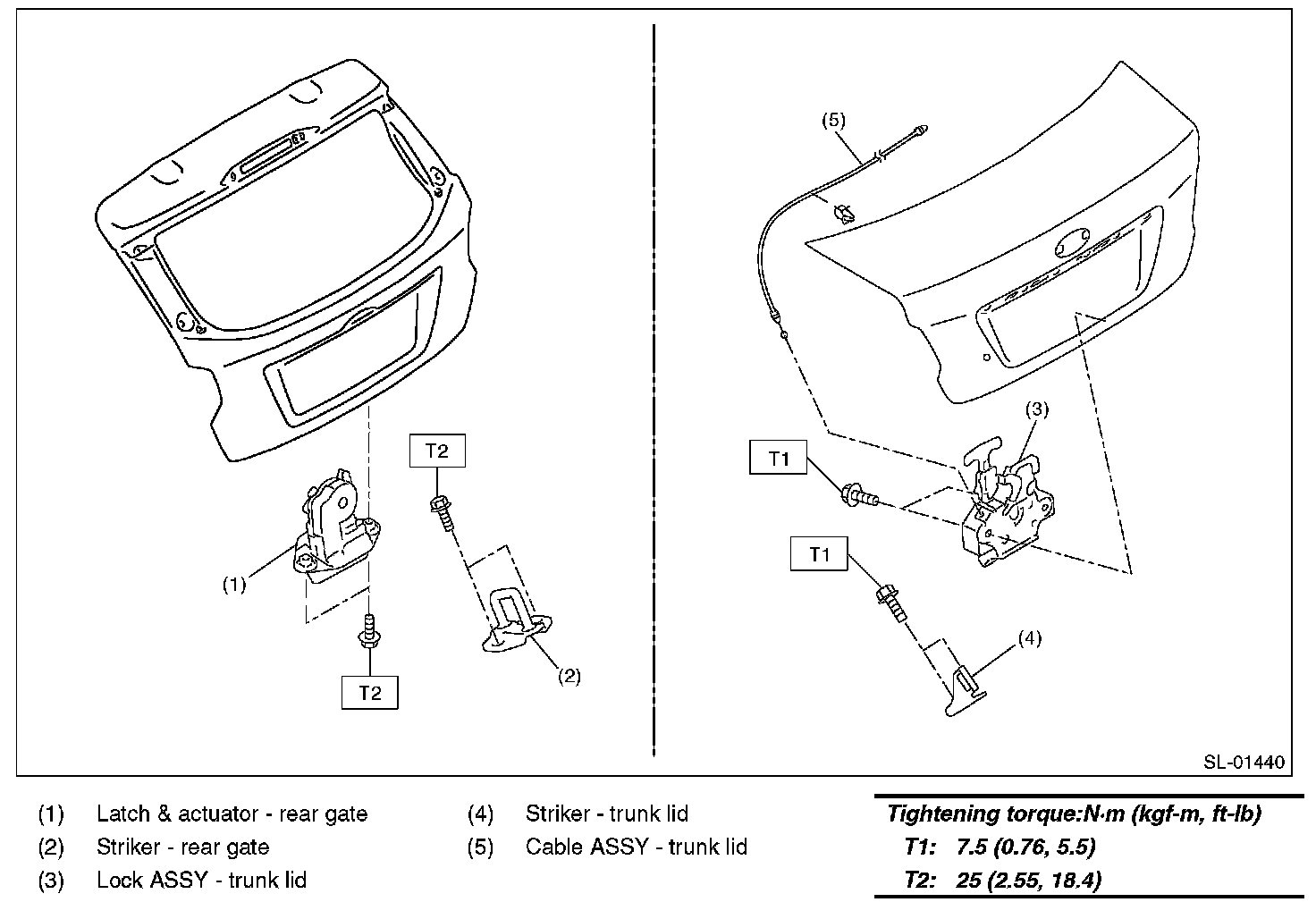

2. REAR GATE LOCK AND TRUNK LID LOCK






3. FRONT HOOD LOCK

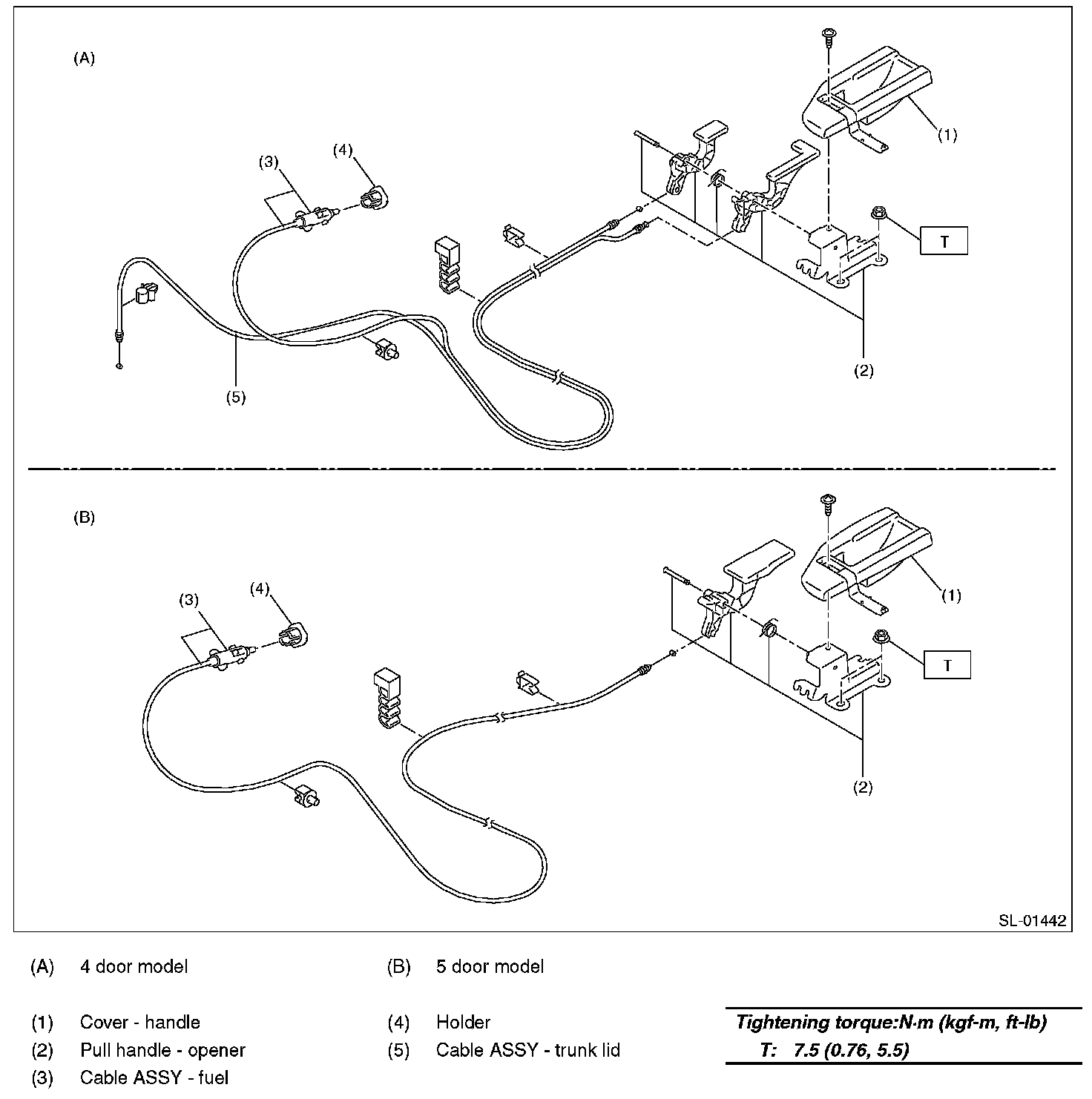

4. REMOTE OPENER






5. KEYLESS ENTRY SYSTEM

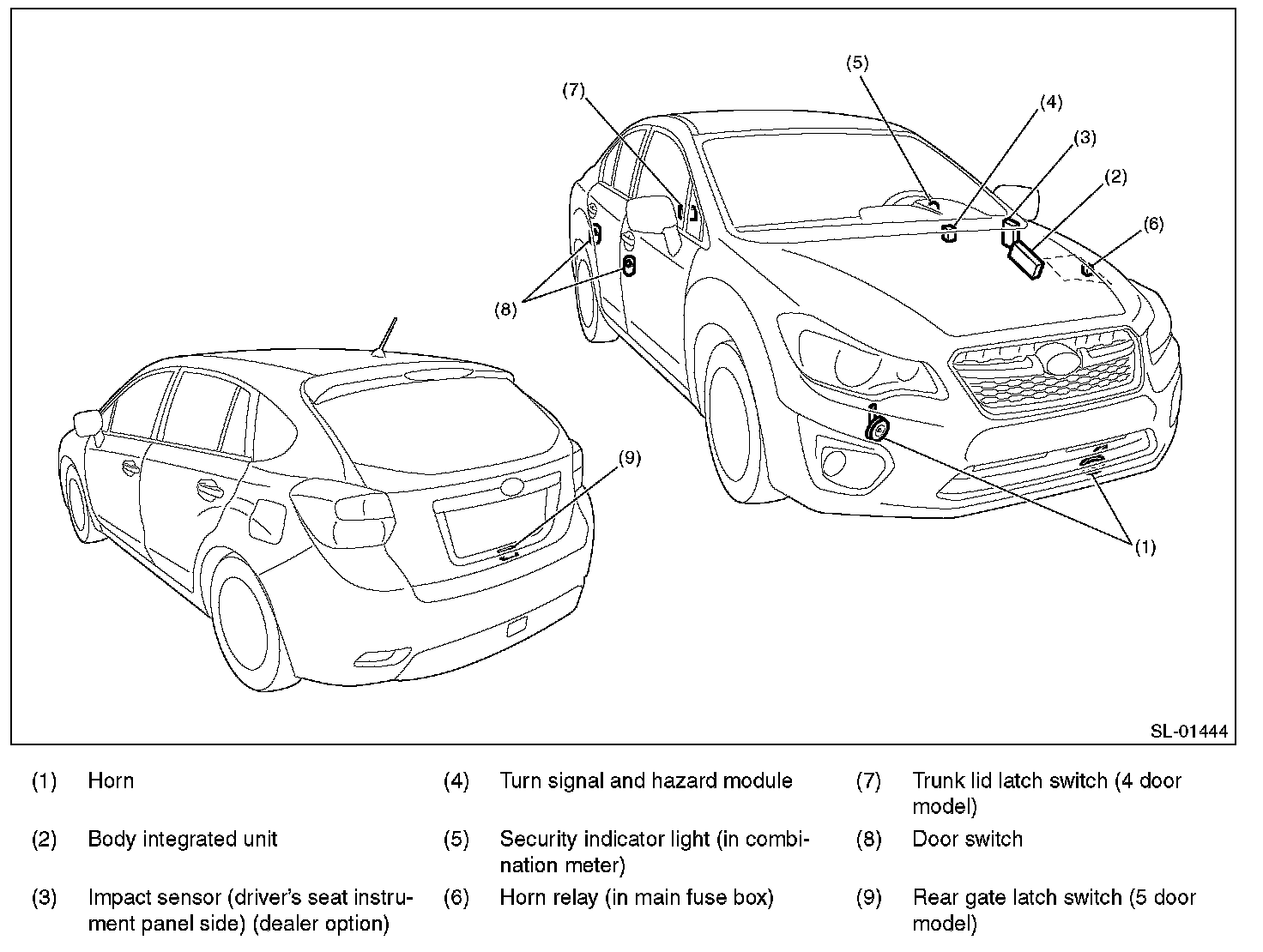

6. SECURITY SYSTEM
