Fuel Injection (Fuel Systems)

General Description

COMPONENT

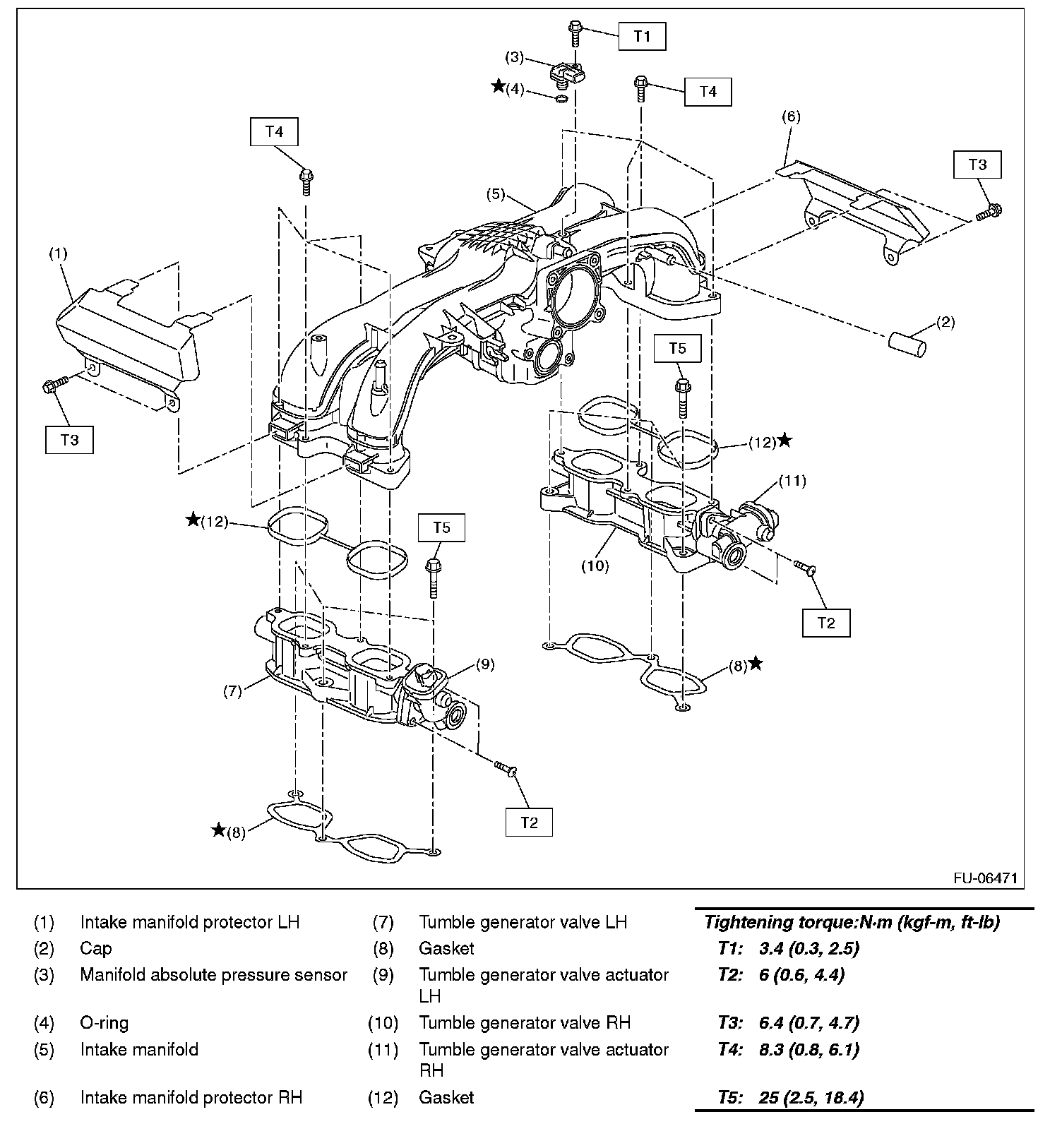

INTAKE MANIFOLD 1






INTAKE MANIFOLD 2
