General Description

General Description

COMPONENT

ENGINE HARNESS

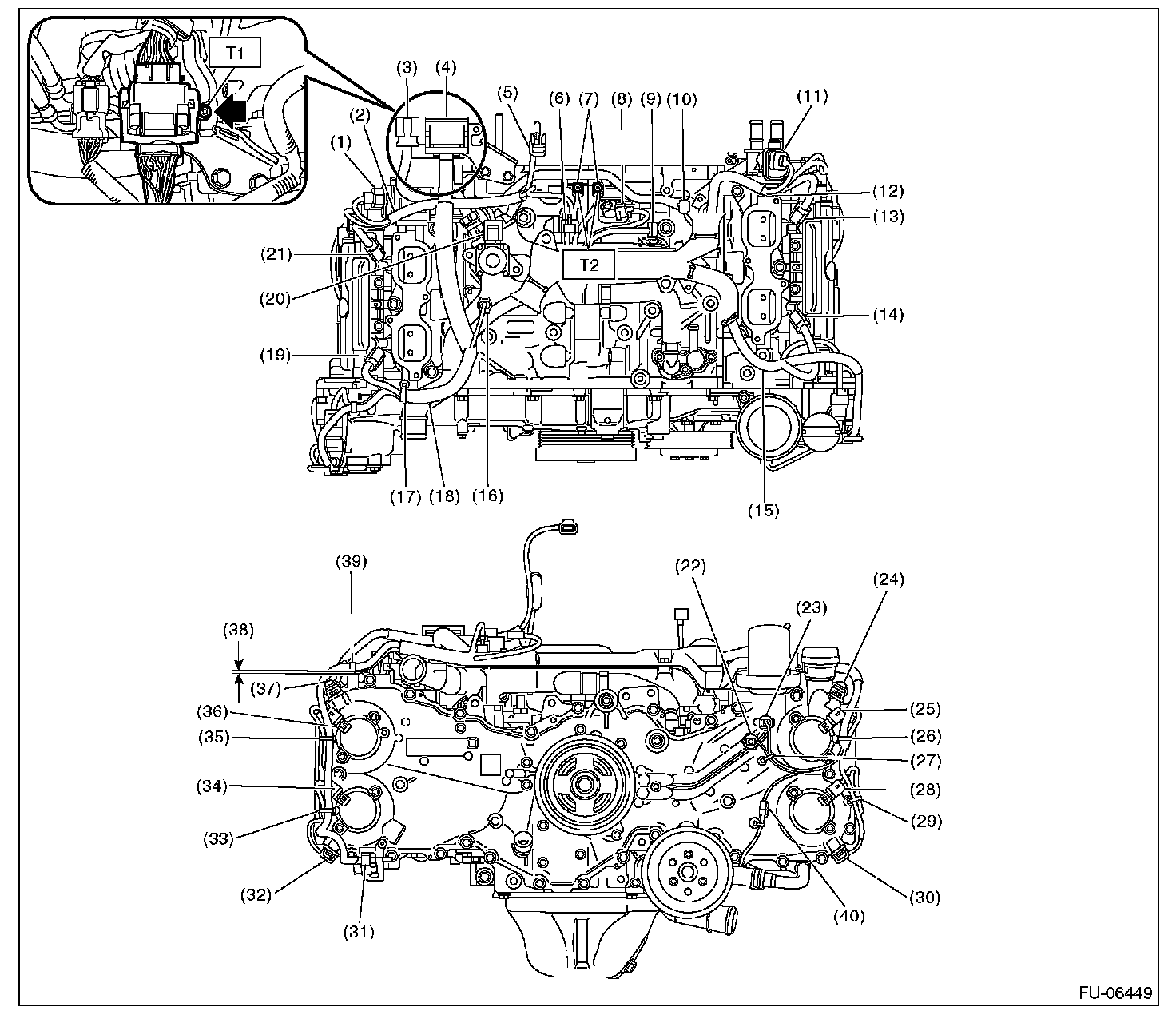

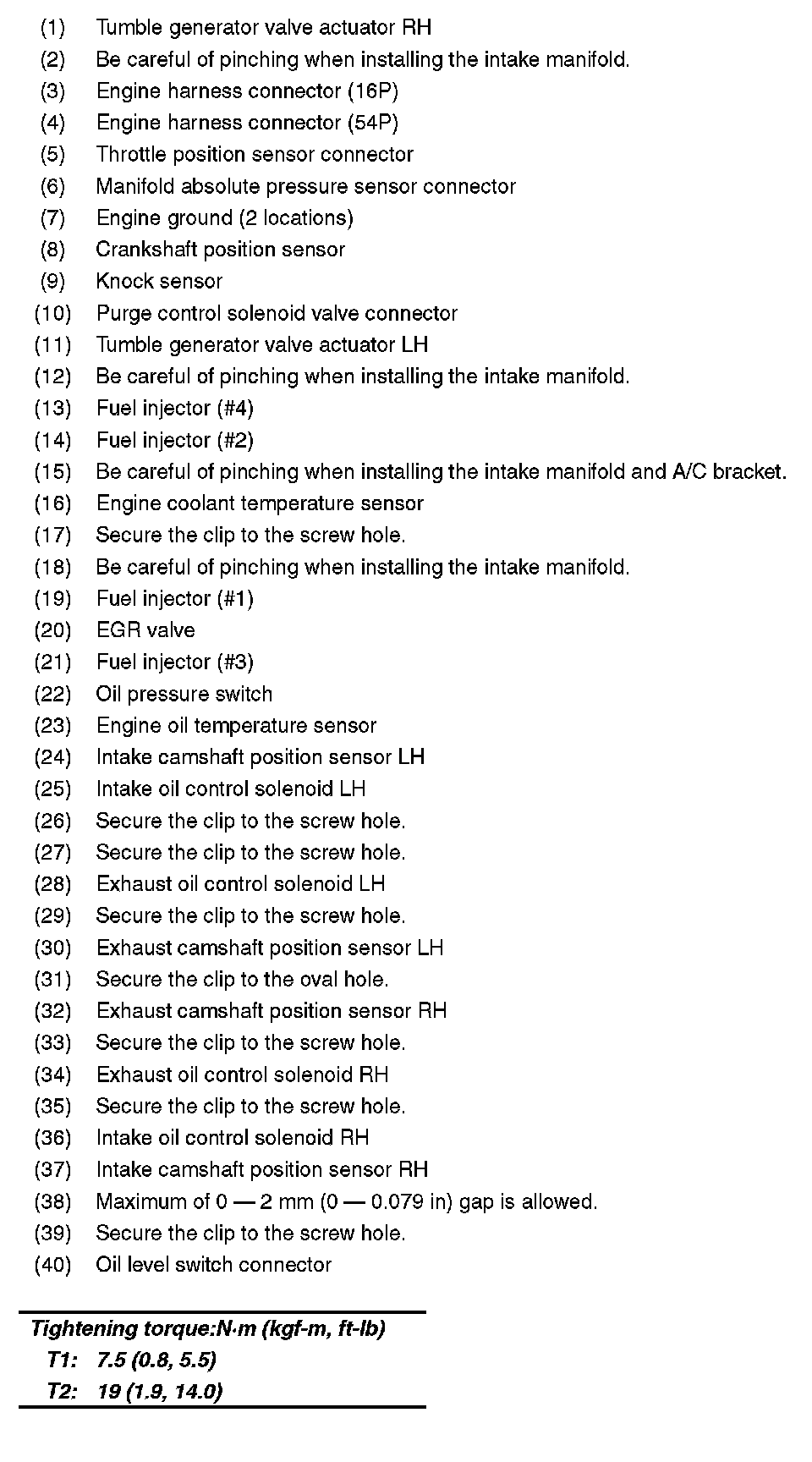

- Structural diagram 1

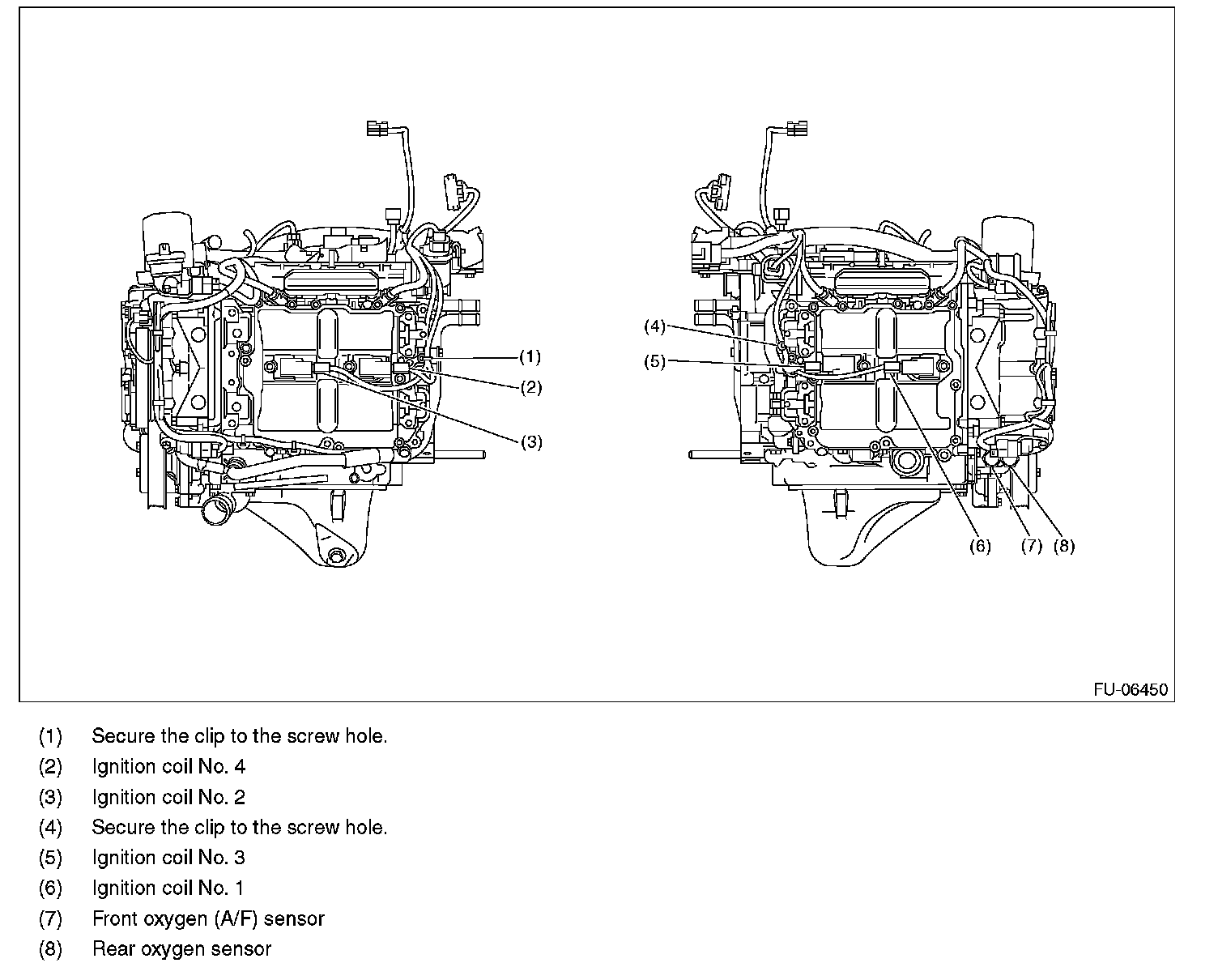

- Structural diagram 2
