Heating and Air Conditioning

General Description

COMPONENT

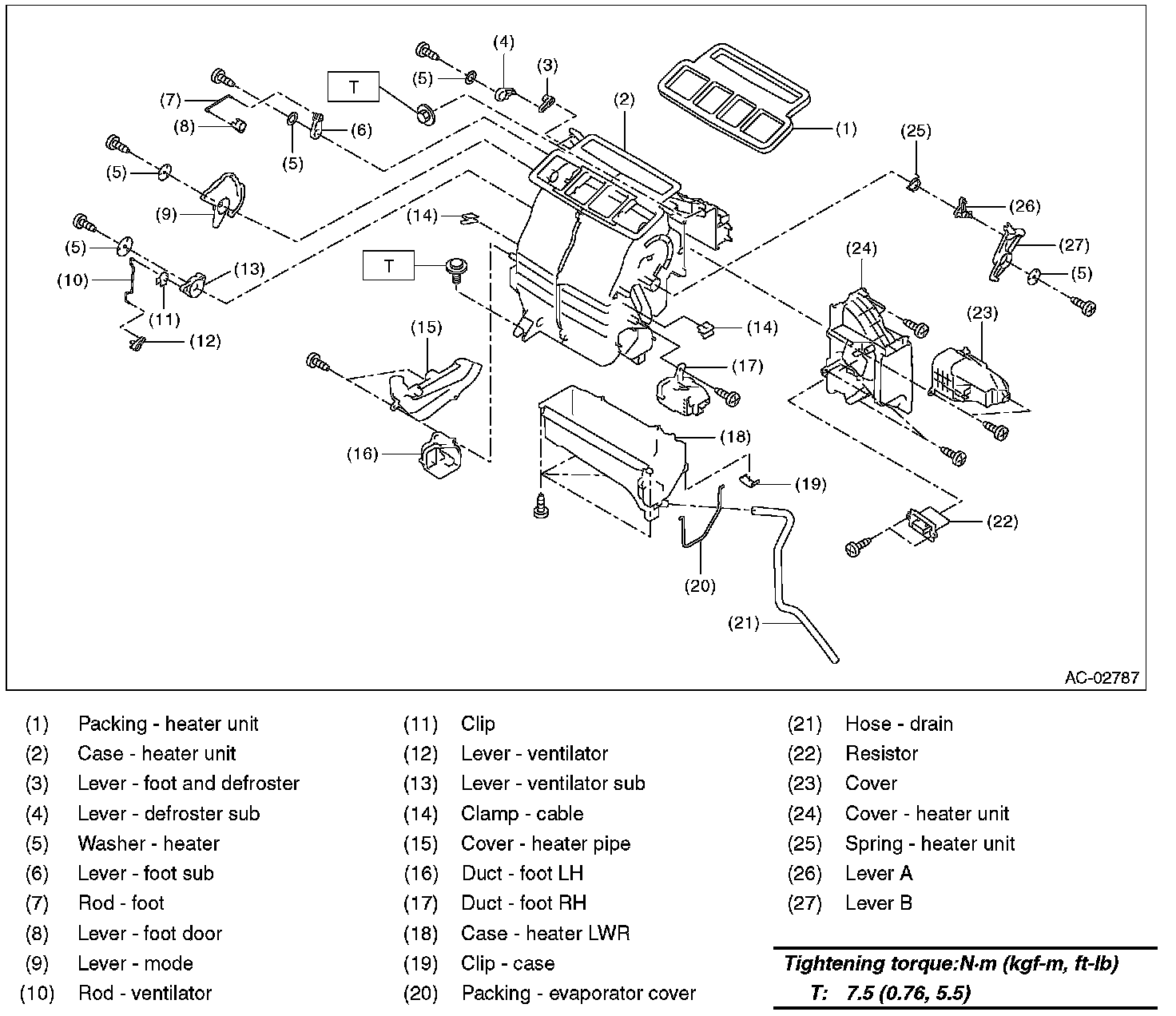

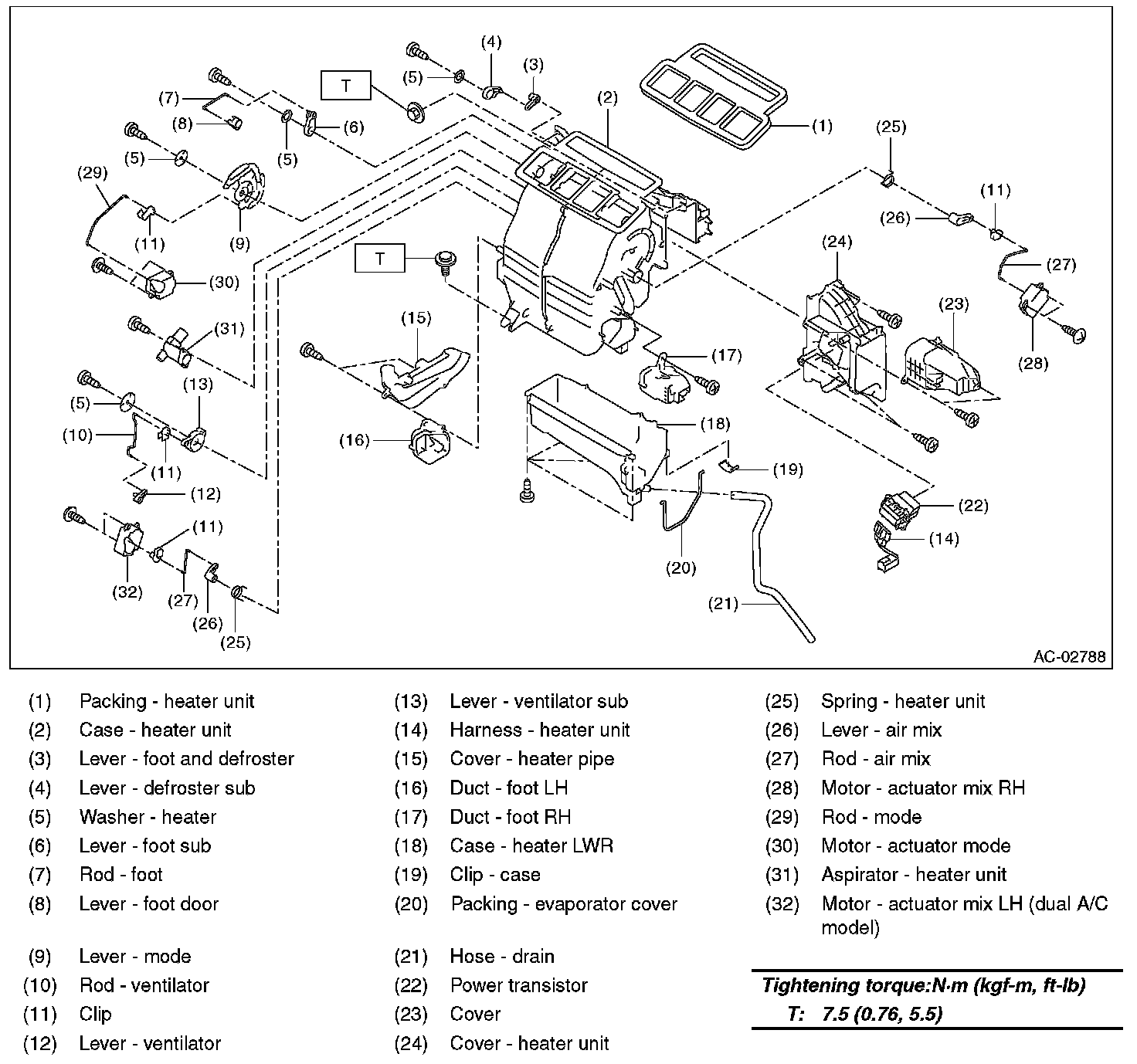

1. HEATER AND COOLING UNIT

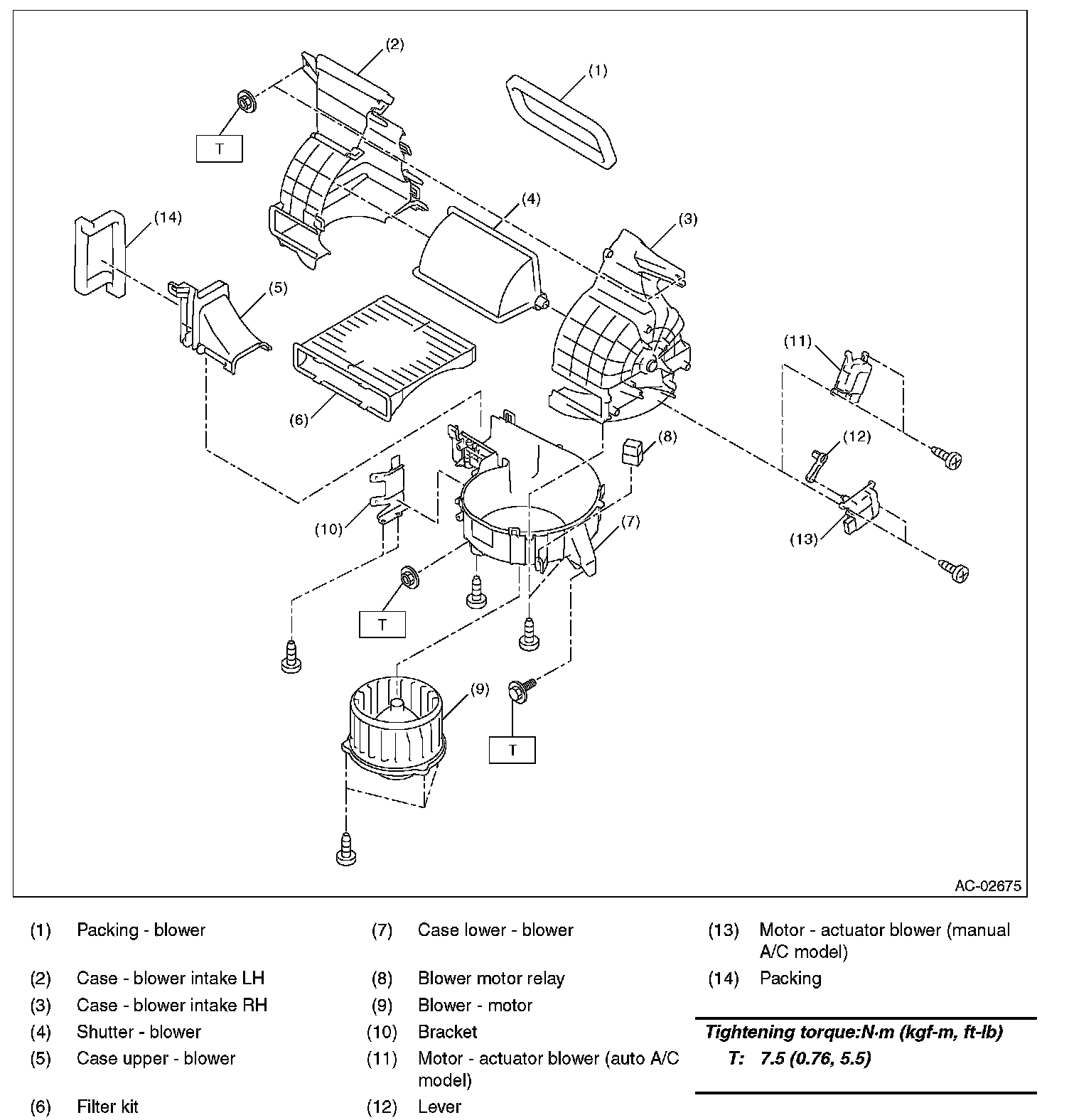

2. BLOWER MOTOR UNIT

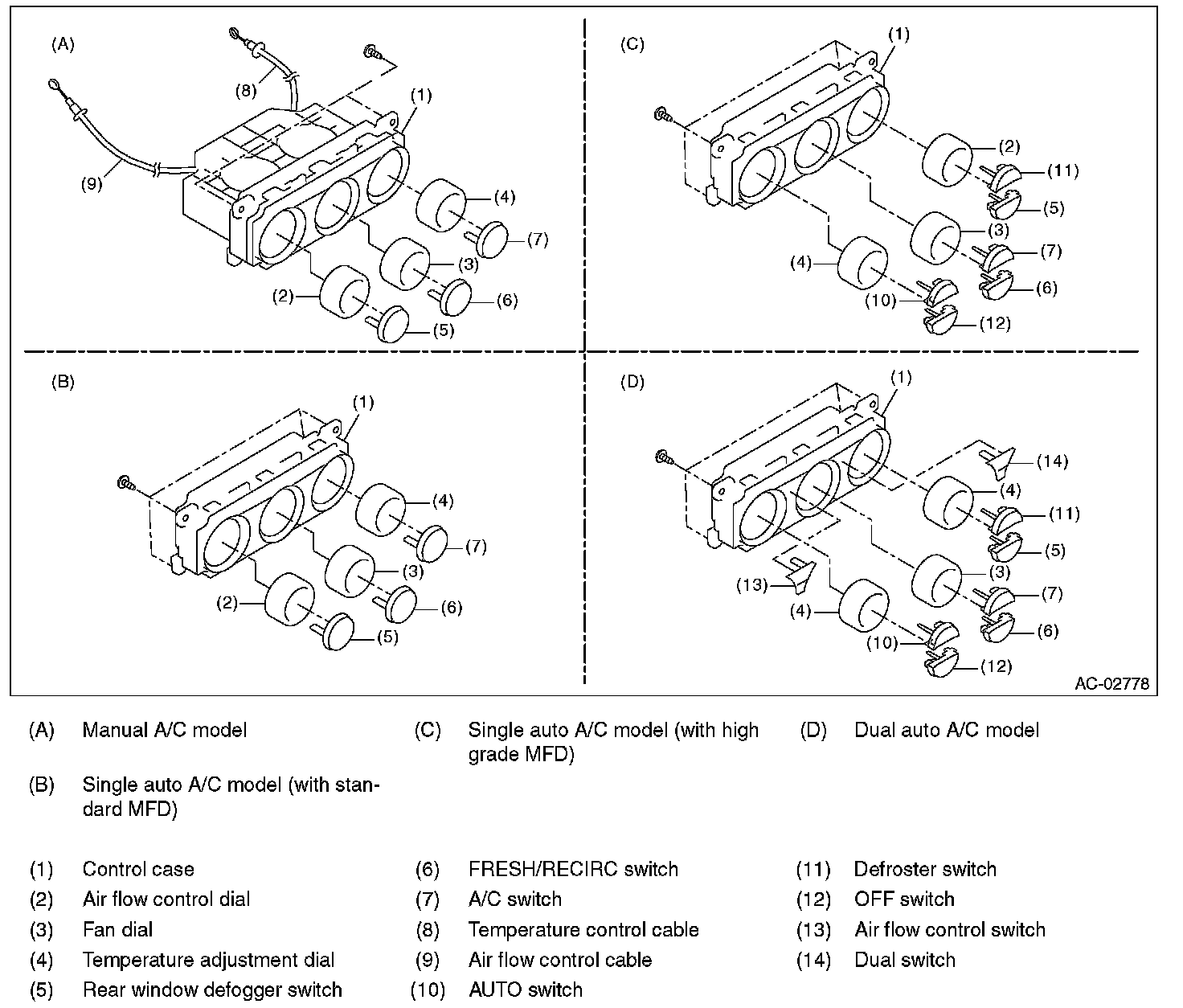

3. CONTROL PANEL

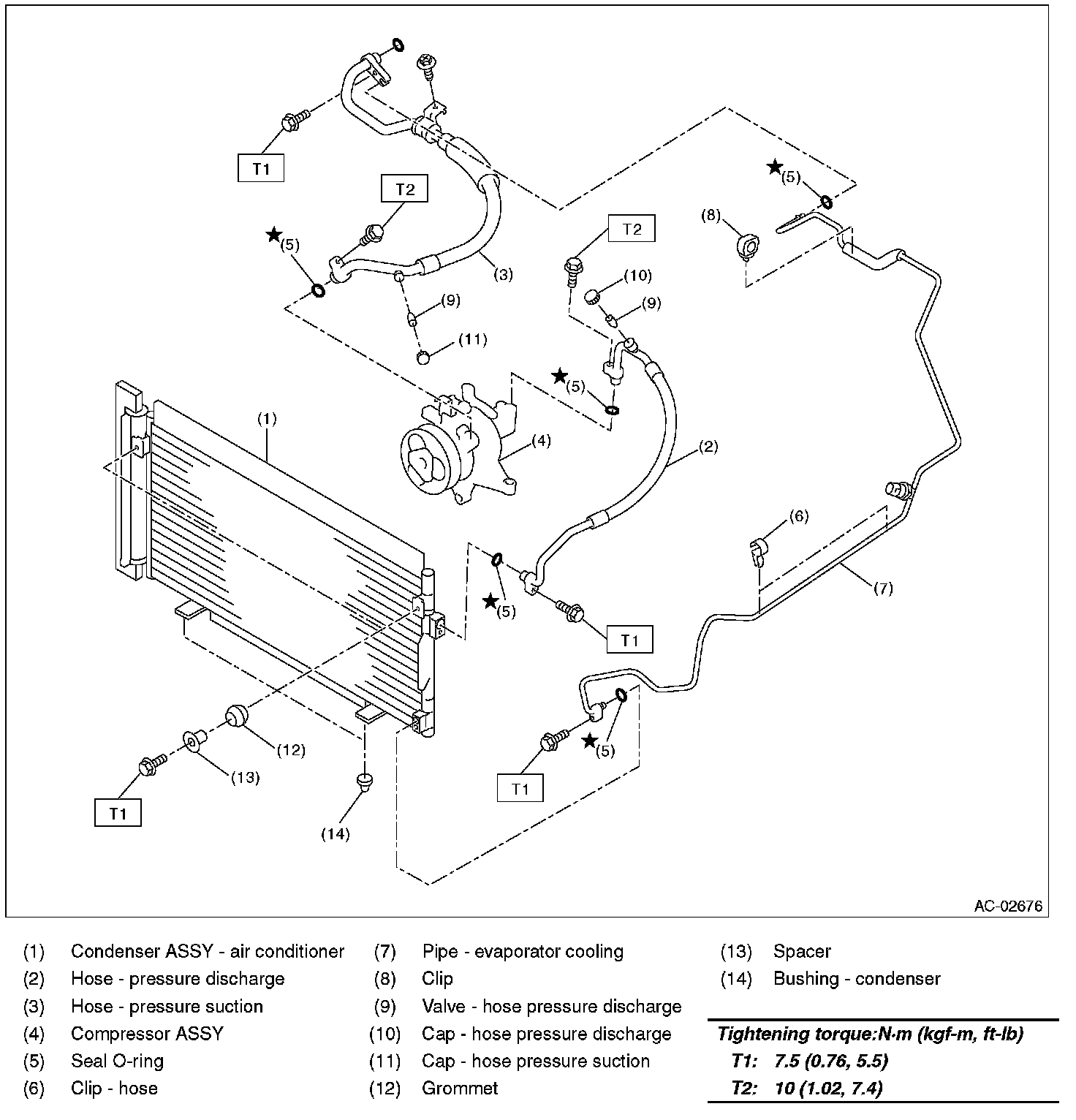

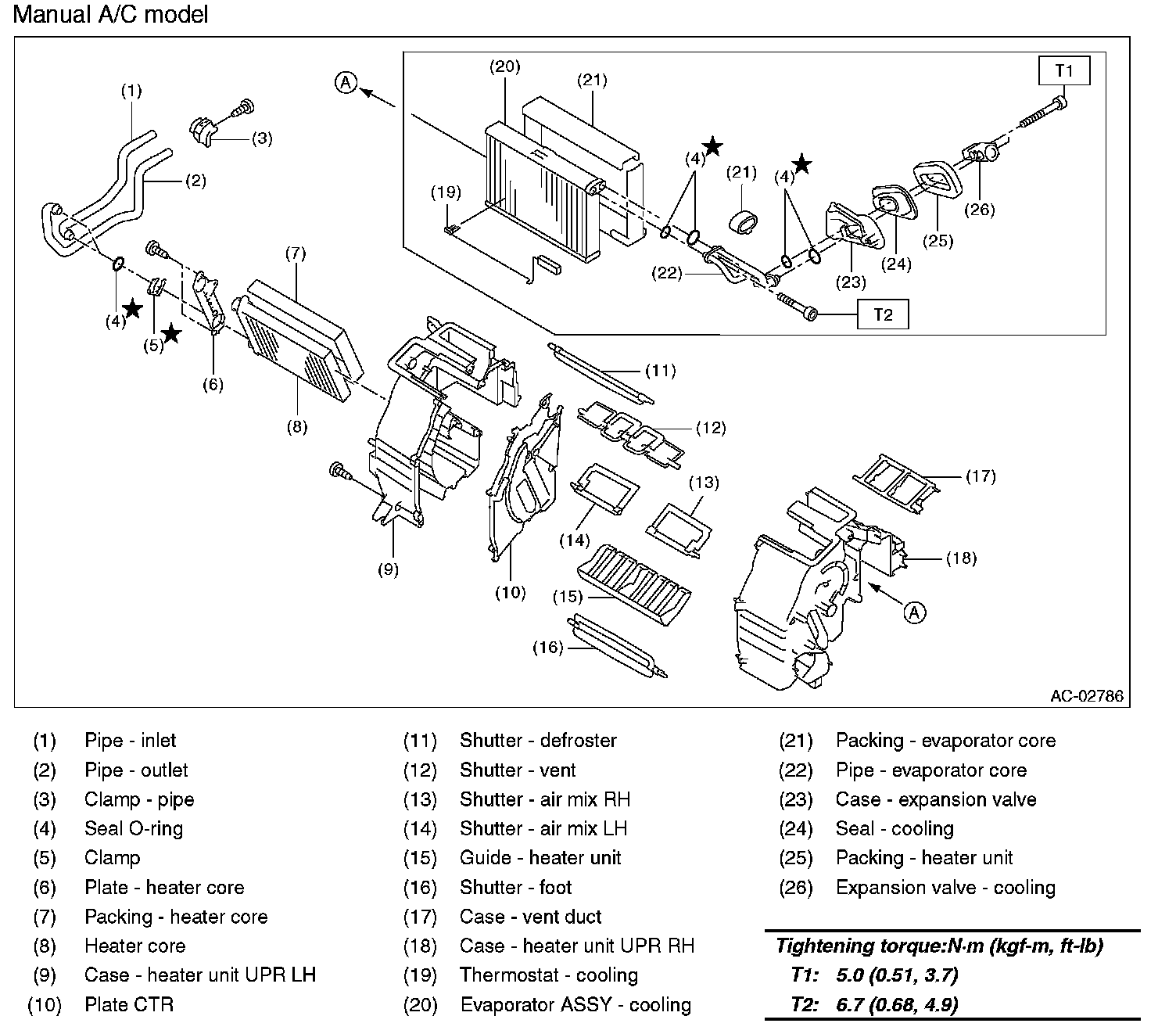

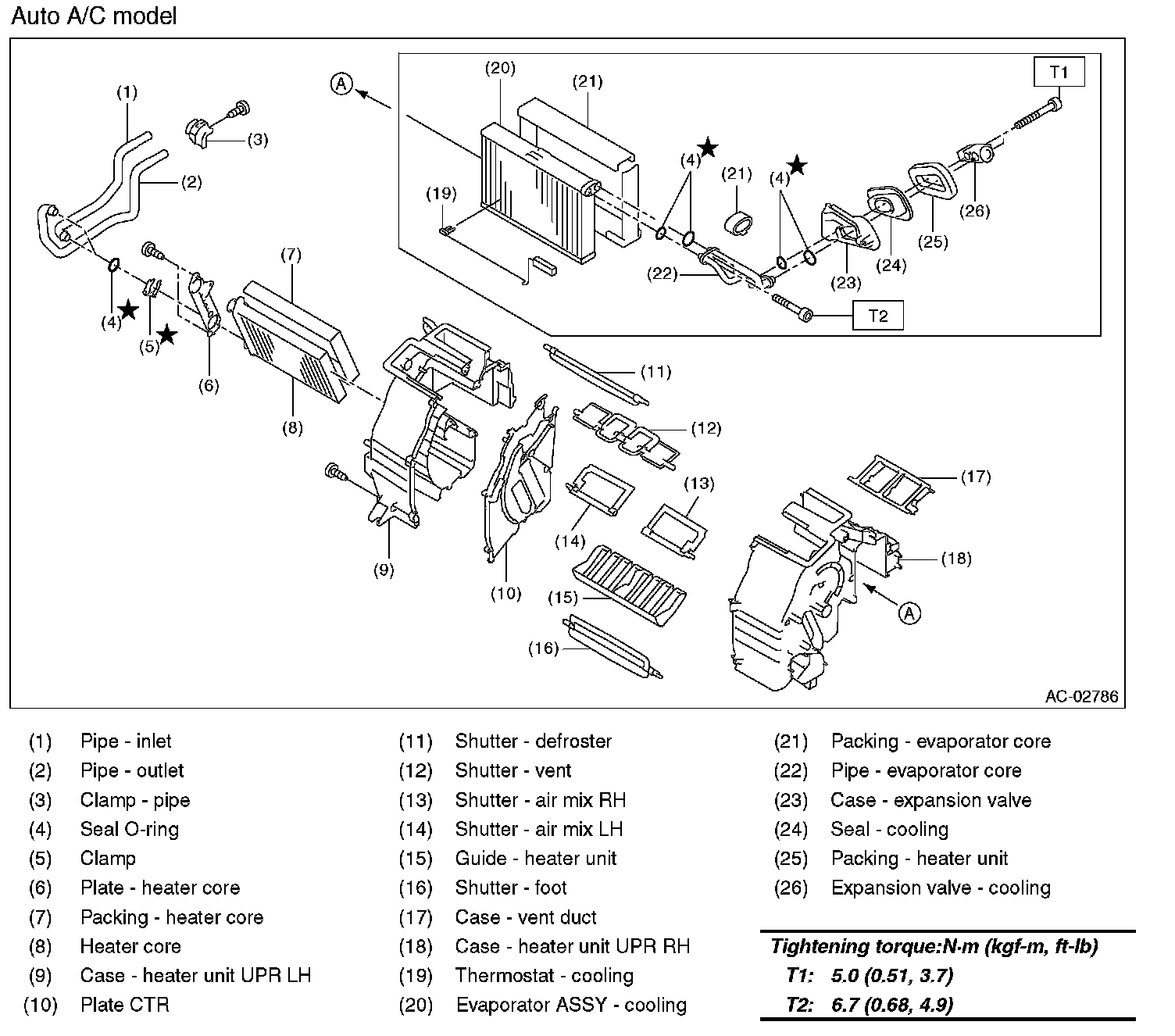

4. AIR CONDITIONING UNIT

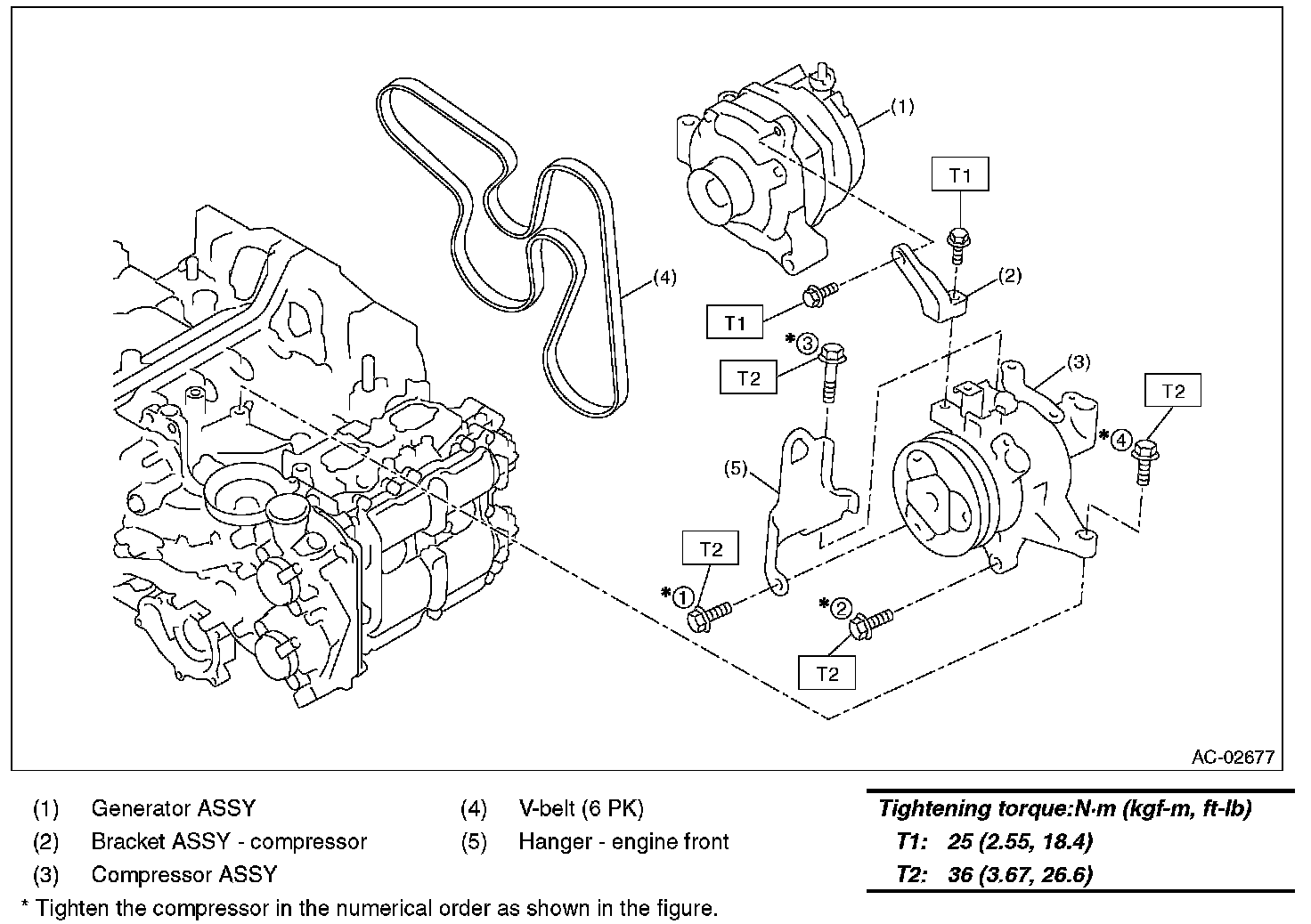

5. COMPRESSOR

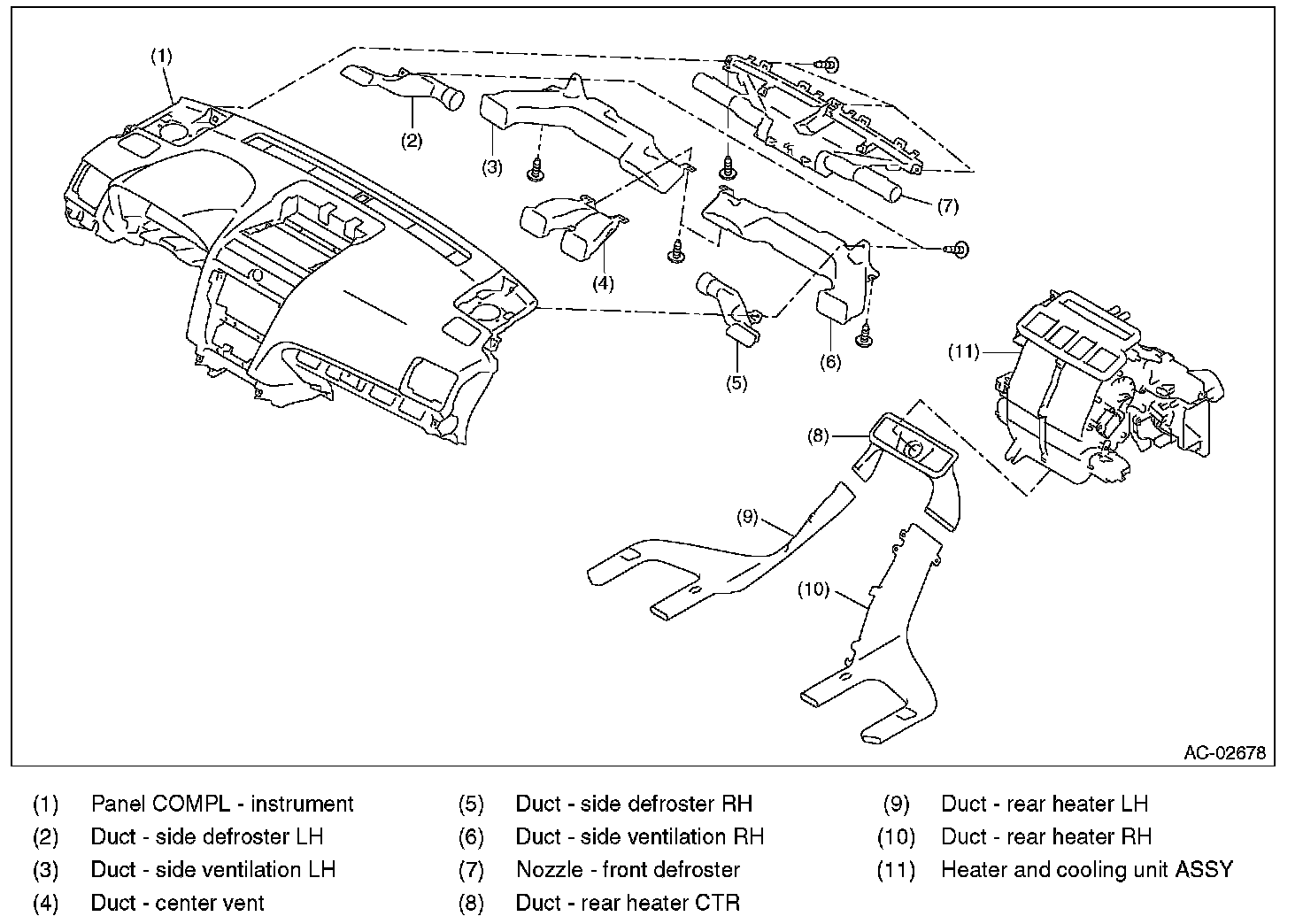

6. HEATER DUCT
