Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor

REMOVAL

1. INTAKE SIDE

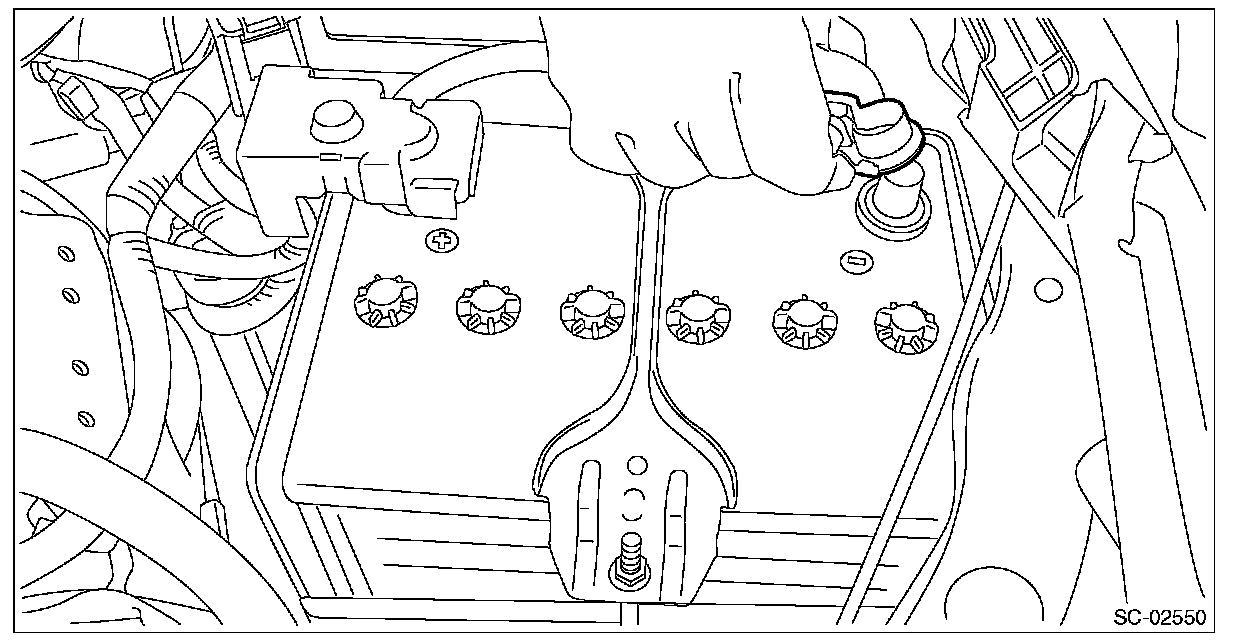

1. Disconnect the ground cable from battery.






2. Remove the air intake duct. (RH side only)
3. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.

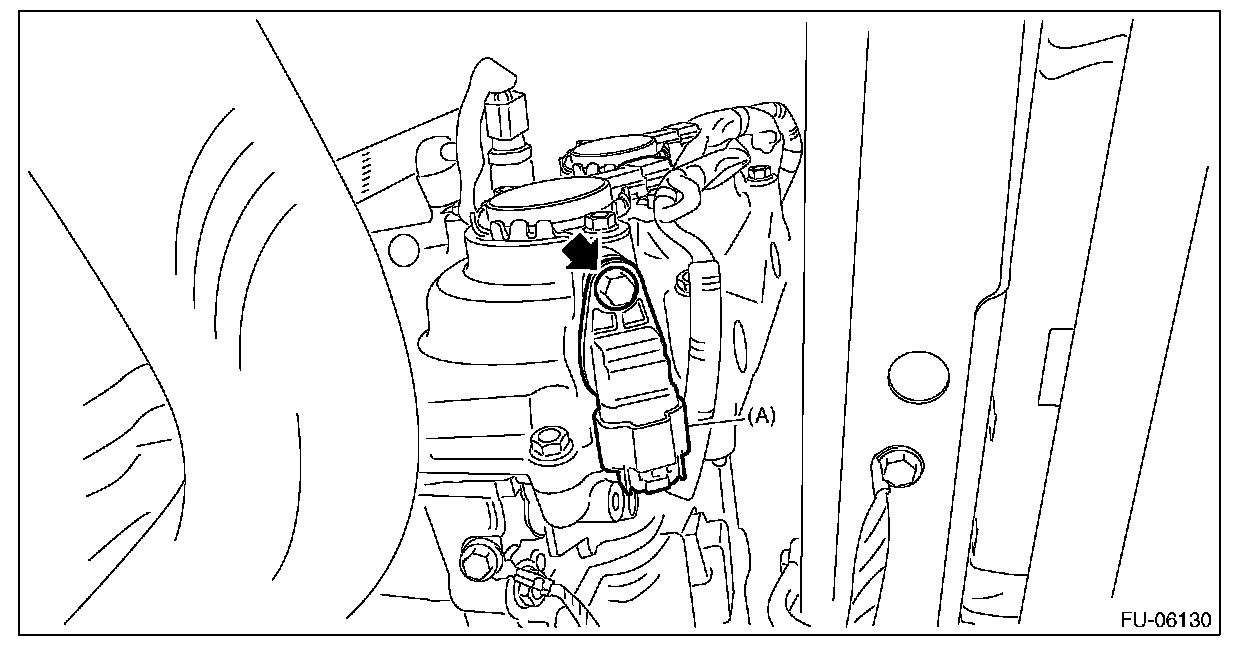

- RH side

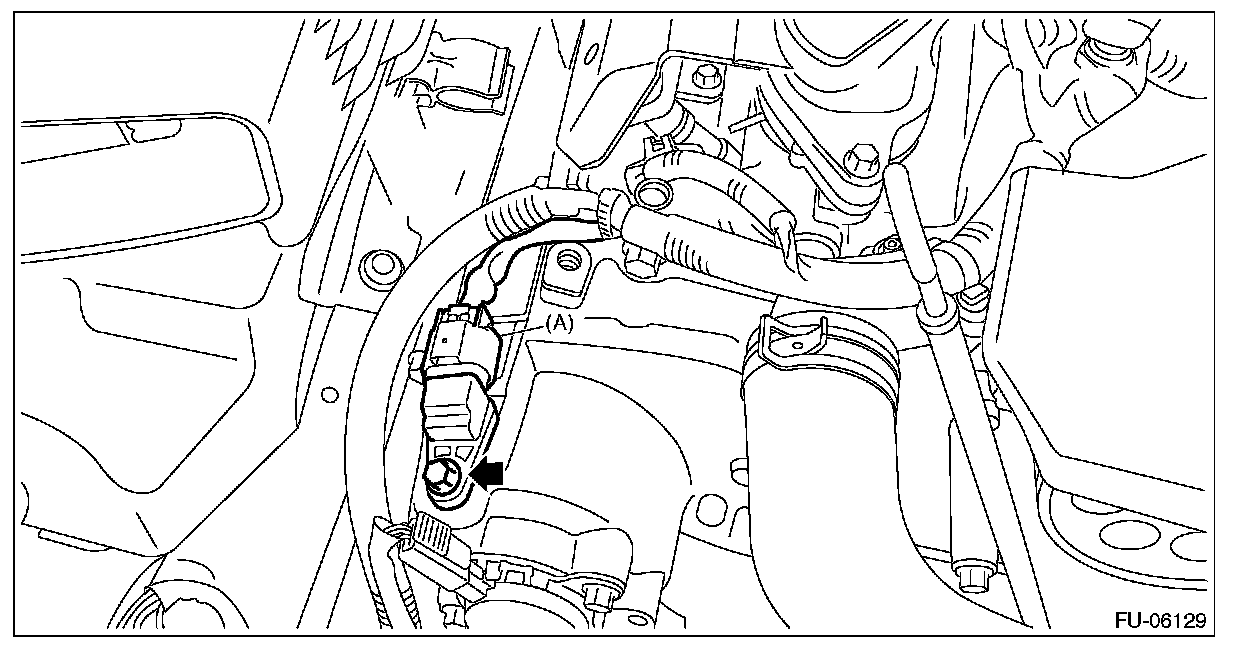

- LH side






2. EXHAUST SIDE

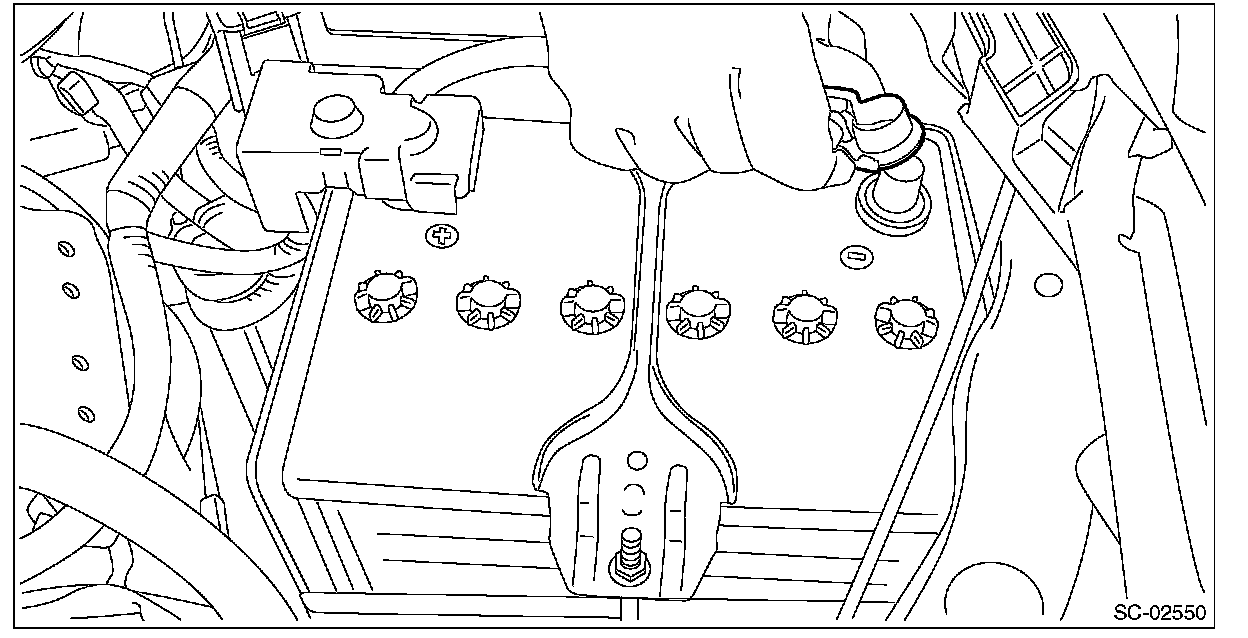

1. Disconnect the ground cable from battery.






2. Remove the under cover.
3. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.

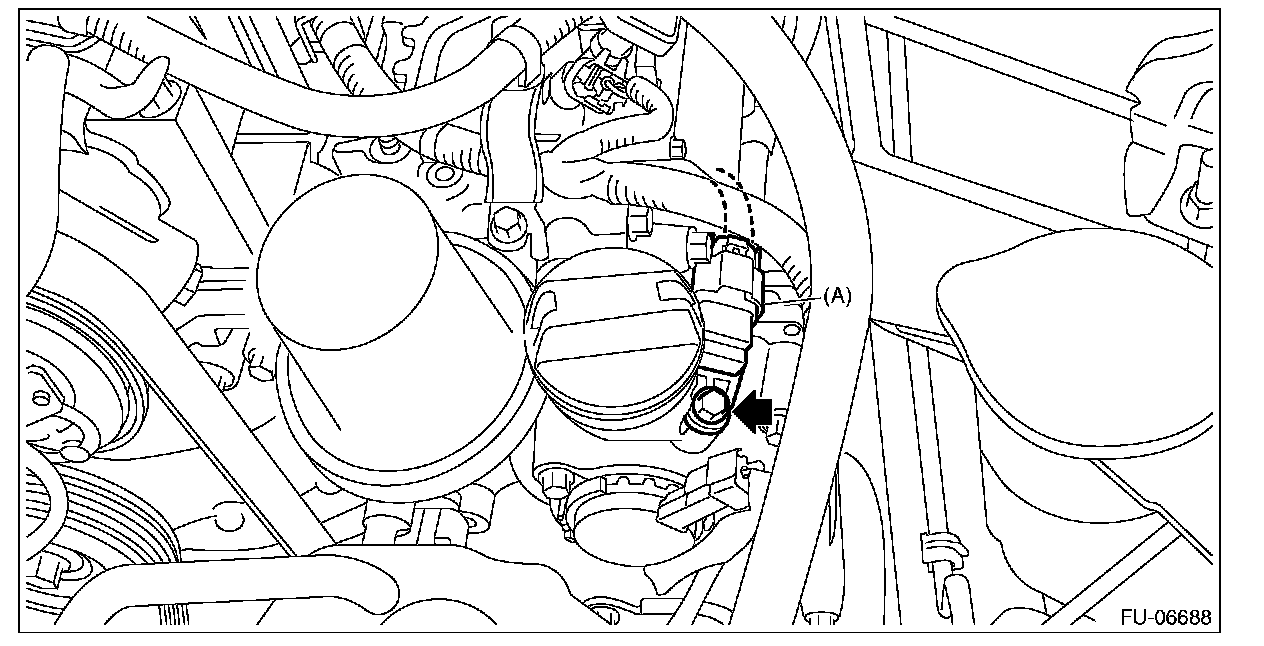

- RH side

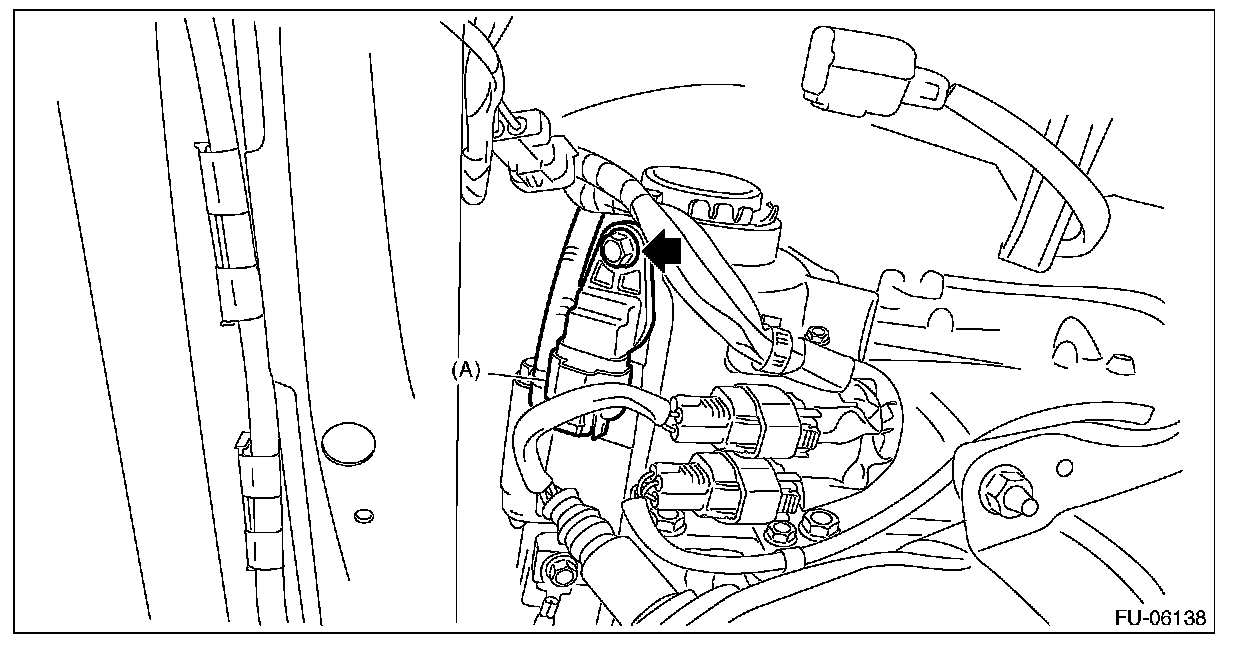

- LH side






INSTALLATION
Install in the reverse order of removal.

NOTE: Use new O-rings.

Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
