System Specifications

General Description

SPECIFICATION

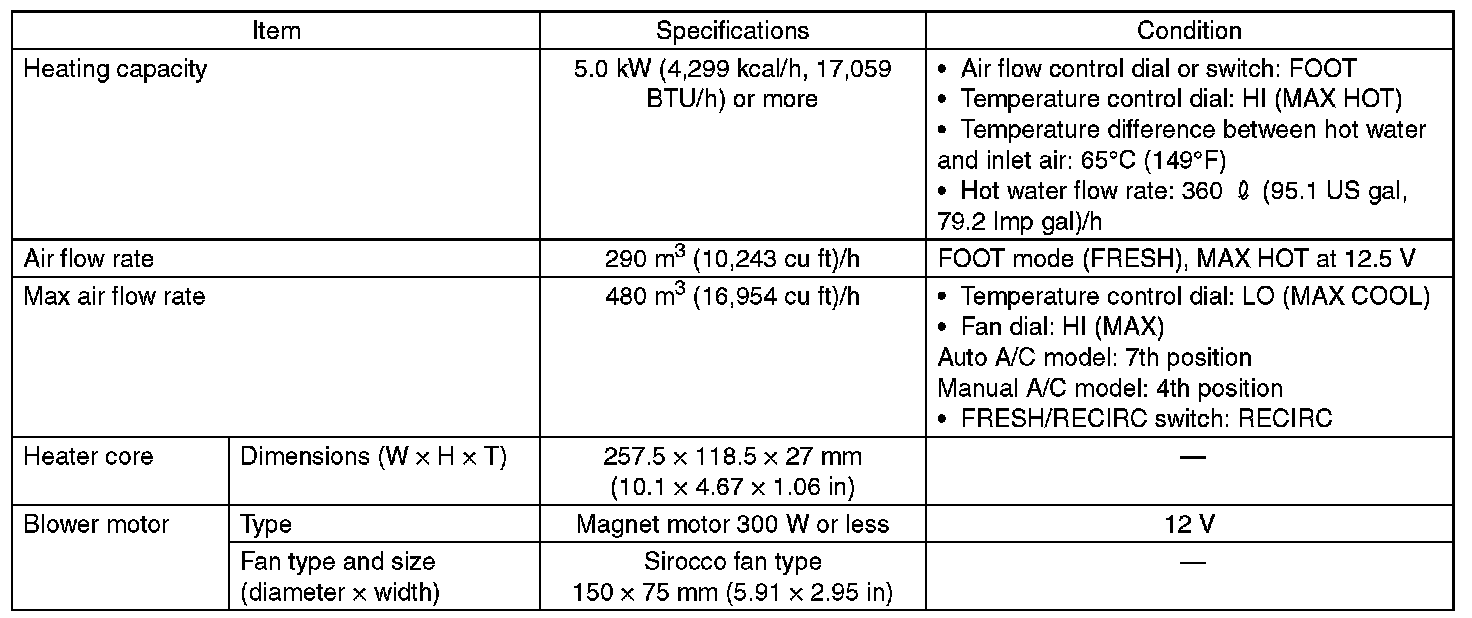

1. HEATER SYSTEM

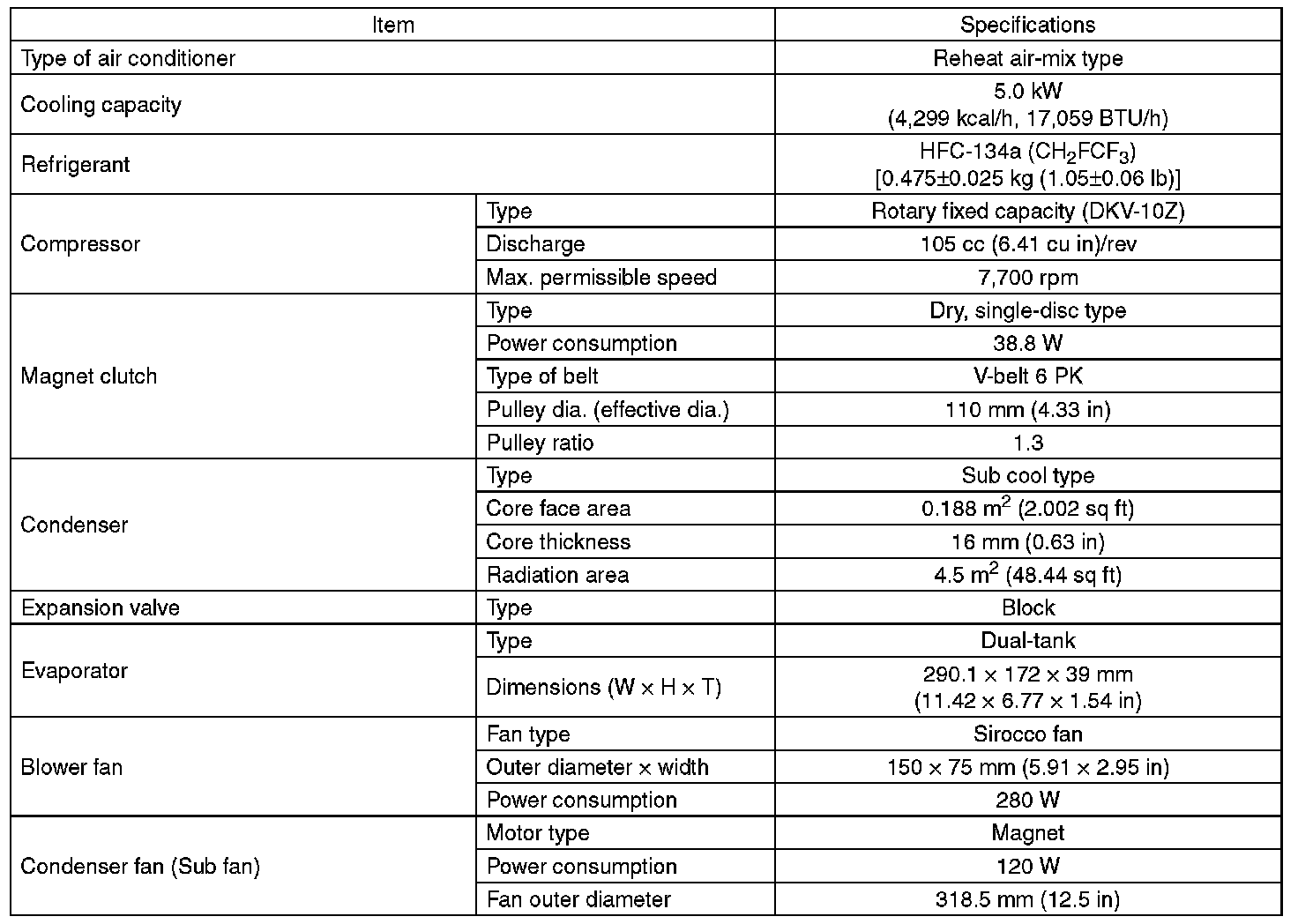

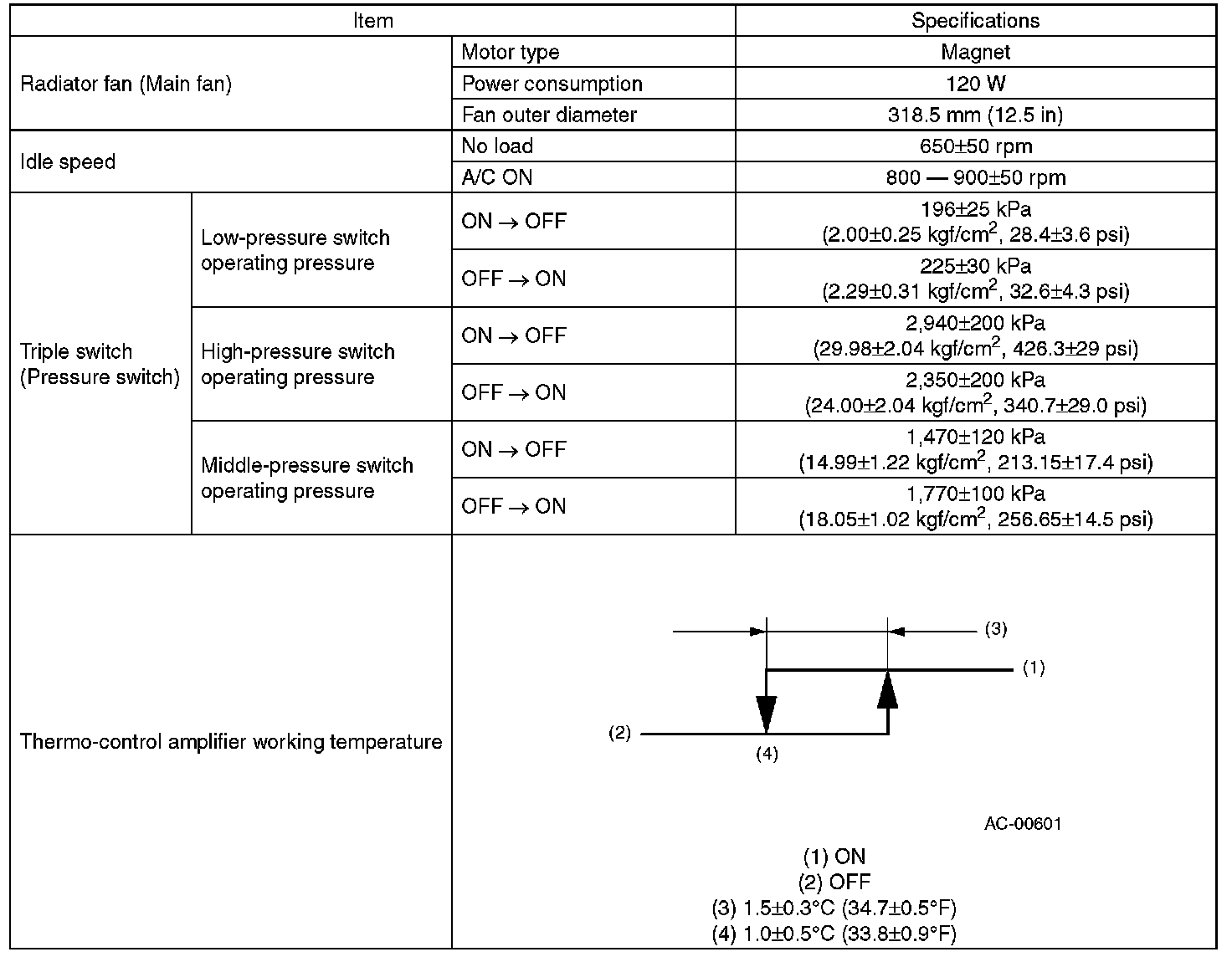

2. A/C SYSTEM

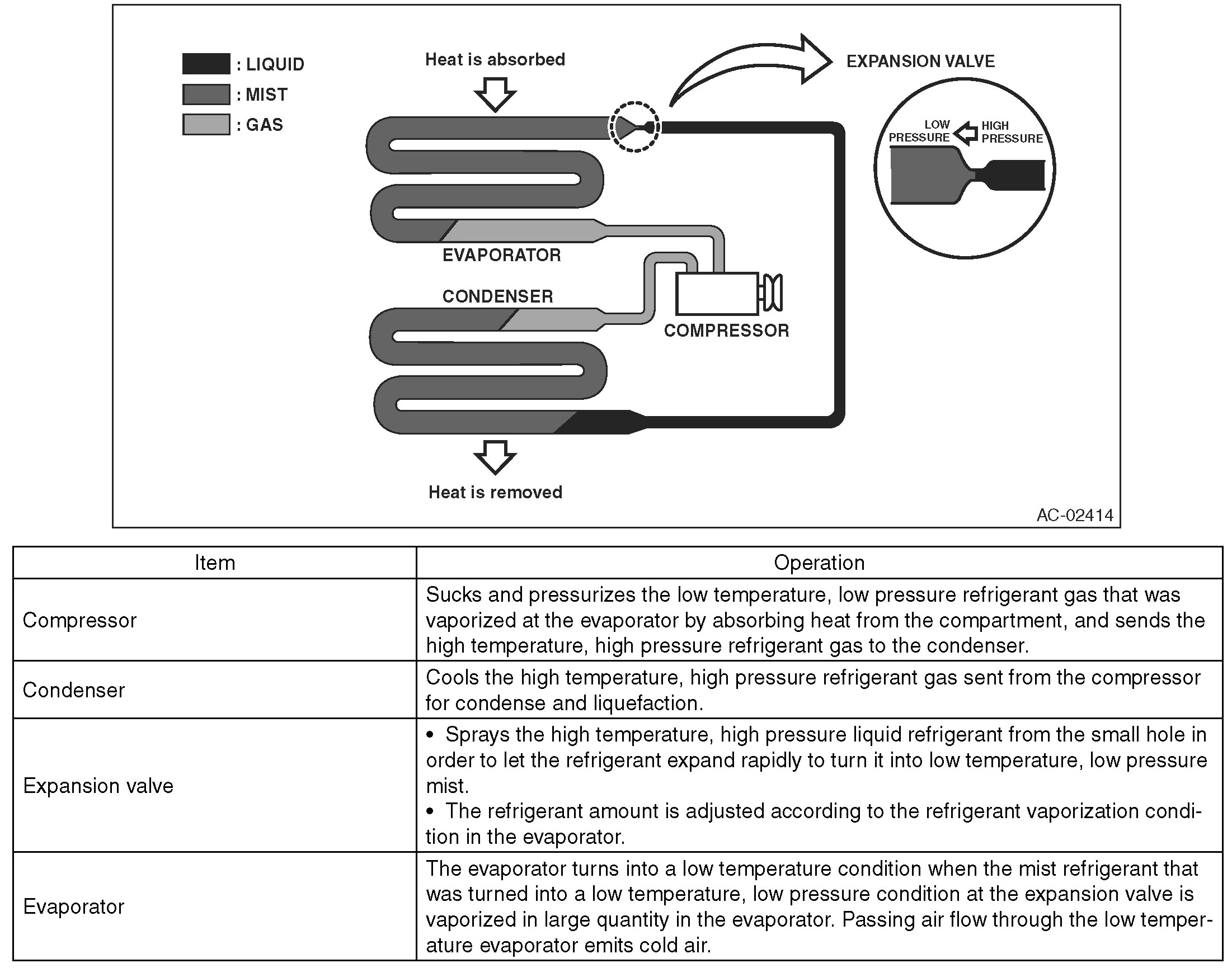

3. BASIC OPERATION
The cooling system cools down the compartment by using the pipes connecting parts and cycling the evaporable liquid (refrigerant) within the sealed system in a repeated process of "vaporization - liquefaction - re-vaporization".
