Keyless Entry

Keyless Entry System

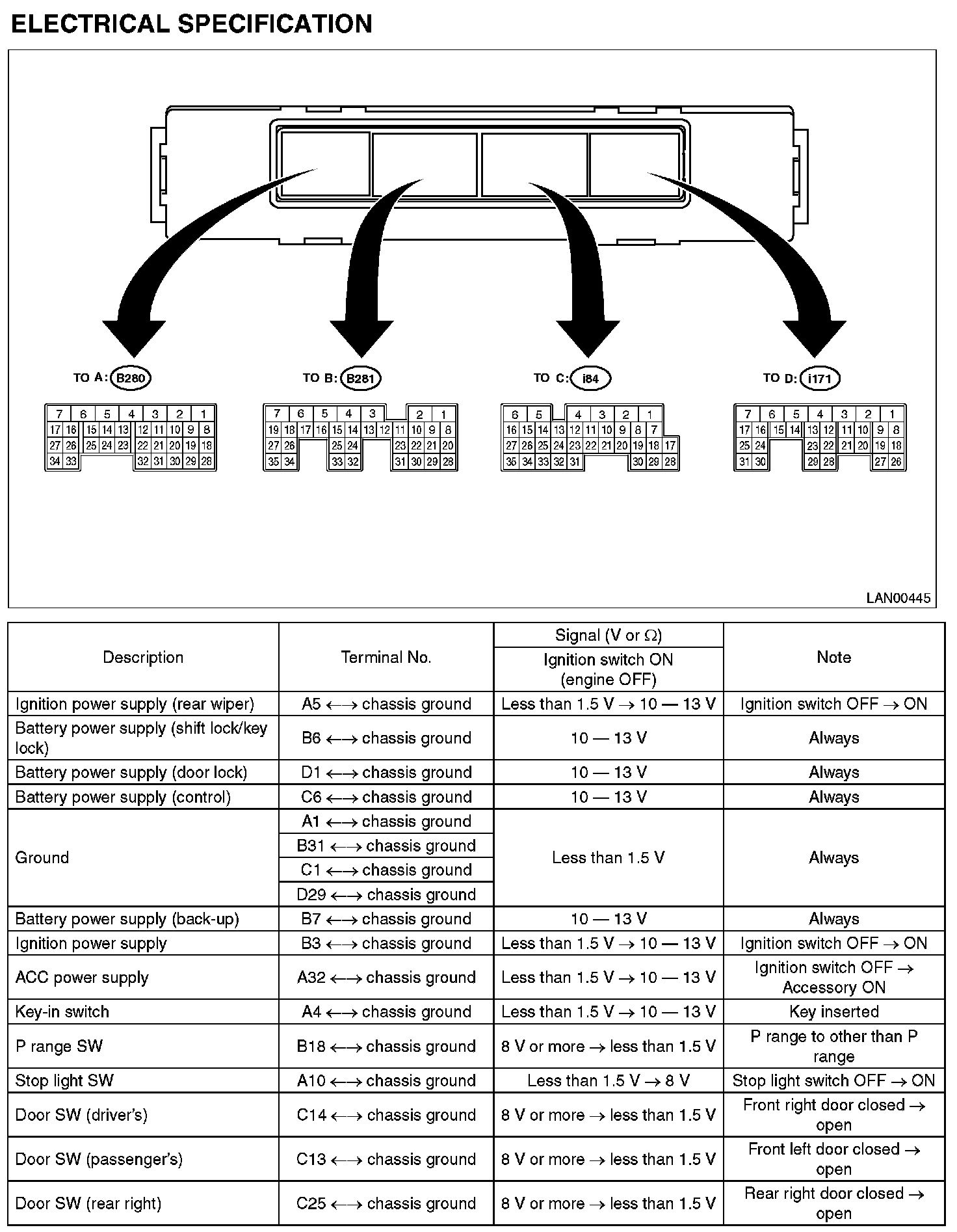

ELECTRICAL SPECIFICATION

1. KEYLESS ENTRY CONTROL MODULE

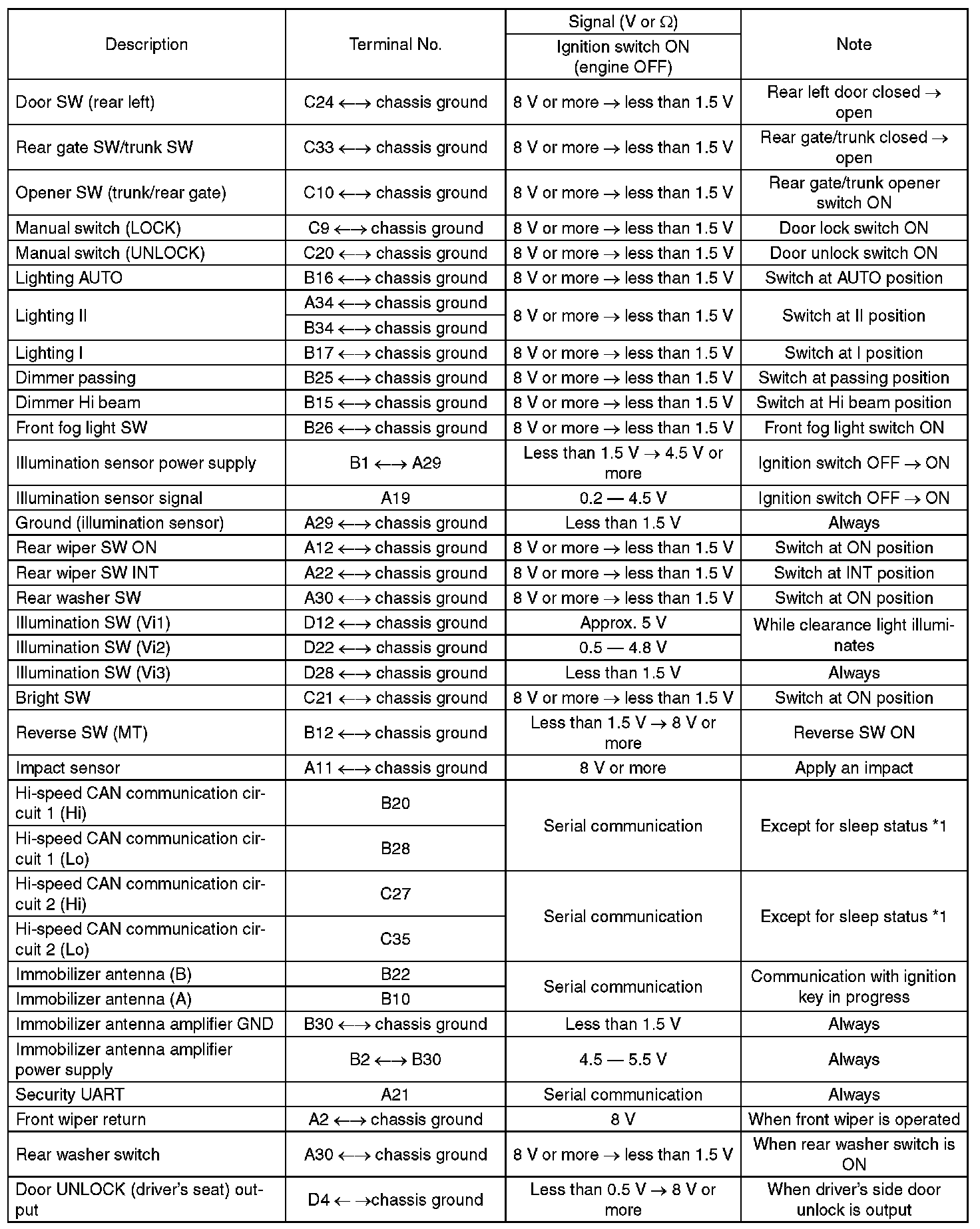

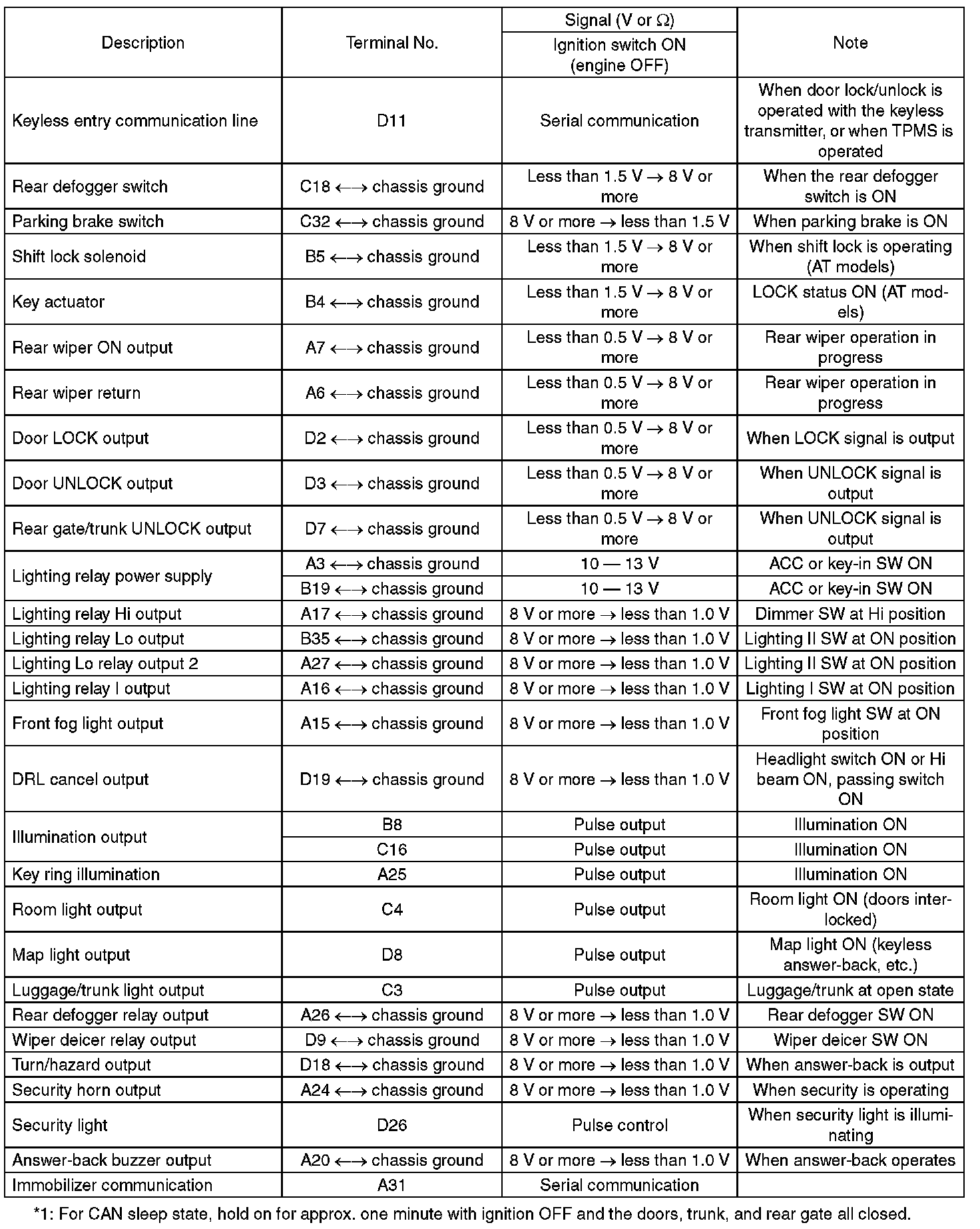

2. BODY INTEGRATED UNIT
