Section 9 (Engine Cooling System (H4DOTC)): Radiator: Installation

WARNING: This page is about a different variant/trim than selected.

Install the radiator lower cushion to the vehicle body.

Fig 1: Locating Radiator Lower Cushion Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to the vehicle.
NOTE: Insert the pin on the lower side of radiator into the radiator lower cushion.
Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Fig 2: Locating Radiator Upper Brackets Bolts
Courtesy of SUBARU OF AMERICA, INC.
Attach the grille bracket.

Fig 3: Locating Grille Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator inlet hose.

Fig 4: Locating Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors of main fan motor connector (A) and sub fan motor connector (B).

Fig 5: Identifying Main Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Sub Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank. Refer to , INSTALLATION , Reservoir Tank.
Install the air intake duct. Refer to AIR INTAKE DUCT .
Lift up the vehicle.
Connect the radiator outlet hose.

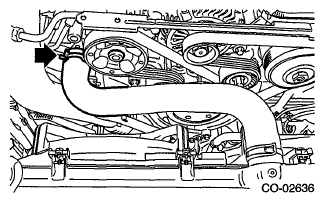

Fig 7: Locating Radiator Outlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Refer to FRONT UNDER COVER .
Lower the vehicle.
Connect the ground cable to battery.

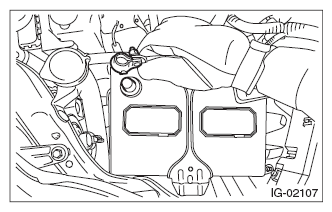

Fig 8: Connecting Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. Refer to , FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Install the collector cover.
