Home >> Subaru >> 2012 >> Legacy F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold >> Intake (Induction)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Intake (Induction)

General Description

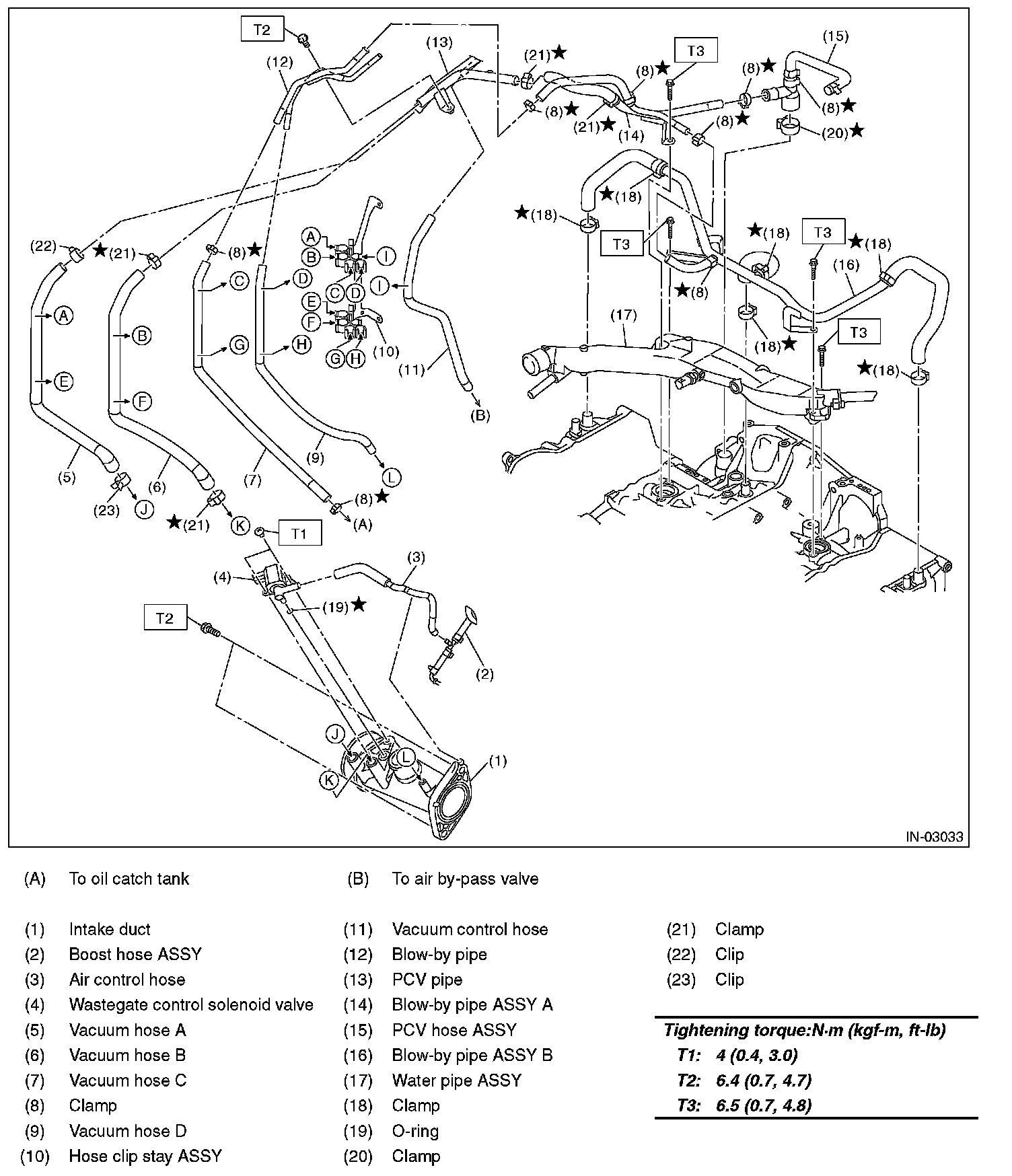

COMPONENT

INTAKE DUCT
