Front Hub Unit Bearing: Removal

1. Lift up the vehicle, and then remove the front wheels.
2. Remove the axle nut.
   CAUTION: Do not loosen the axle nut while the front axle is loaded. Doing so may damage the hub bearing.
   1. Lift the crimped section of axle nut.
   2. Remove the axle nut using a socket wrench while depressing the brake pedal.
   Fig 1: Removing Axle Nut Using Socket Wrench

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the front ABS wheel speed sensor.
   Fig 2: Locating Front ABS Wheel Speed Sensor Bolt

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the front disc brake caliper from the front axle housing.
   1. Remove the mounting bolts, and then remove the front disc brake caliper.
   2. Prepare wiring harnesses etc. to be discarded, and suspend the front disc brake caliper from the shock absorber with the harnesses.
   Fig 3: Locating Front Disc Brake Caliper And Mounting Bolts

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the disc rotor.
   NOTE: When the disc rotor is difficult to be removed from the front hub unit bearing, screw in 8 mm (0.31 in) bolt to the threaded part of the disc rotor (A), and remove the disc rotor.
   Fig 4: Identifying Front Hub Unit Bearing And Screw In Bolt

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the bolt from the front axle housing.

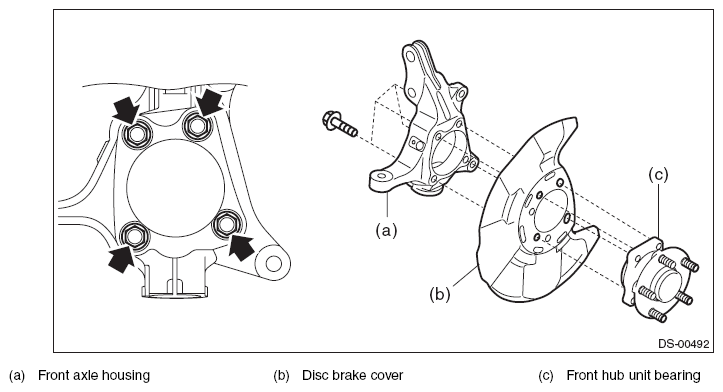

   Fig 5: Locating Front Axle Housing Bolts

   Courtesy of SUBARU OF AMERICA, INC.
   CAUTION:

   • Do not get closer the tool which charged magnetism to magnetic encoder.
   • Be careful not to damage the magnetic encoder.
   Fig 6: Identifying Front Hub Unit Bearing And Magnetic Encoder

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the front hub unit bearing. If it is hard to remove, use the ST.

PREPARATION TOOL:

ST1: AXLE SHAFT PULLER (926470000)

ST2: AXLE SHAFT PULLER PLATE (28099PA110)

Fig 7: Removing Front Drive Shaft Assembly From Hub

Courtesy of SUBARU OF AMERICA, INC.
