Starting/Charging Systems (H4SO): Battery: Removal

  1. After disconnecting the battery ground terminal, remove the terminal cover, then disconnect the positive terminal.
  2. Remove the battery cable holder from the battery rod.
  3. Remove flange nut from the battery rod and remove battery holder.

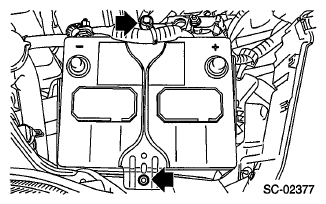

    Fig 1: Locating Flange Nut On Battery Rod
    G06648717Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the battery.
