Basic Diagnostic Procedure: Procedure

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

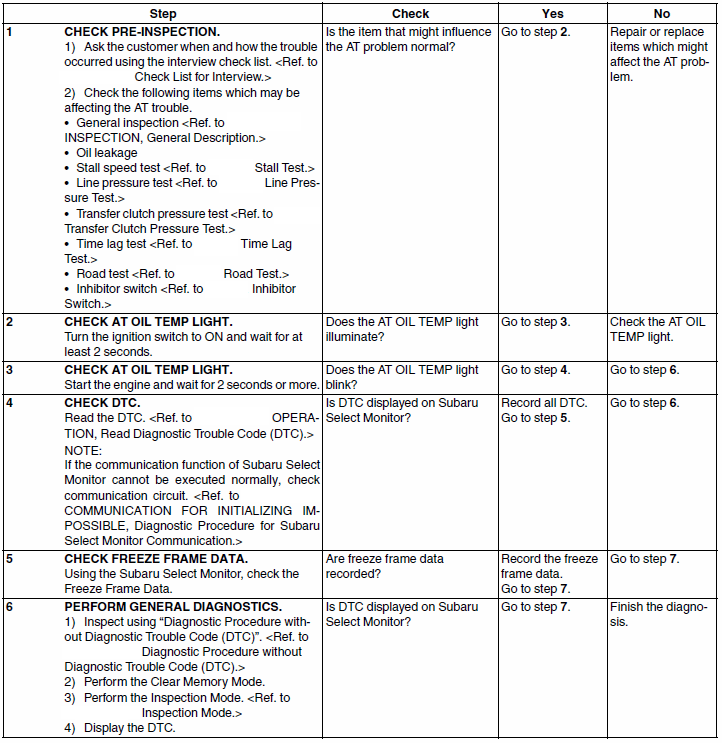

Fig 1: Automatic Transmission Diagnostic Procedure (1 Of 2)
G00510796Courtesy of SUBARU OF AMERICA, INC.

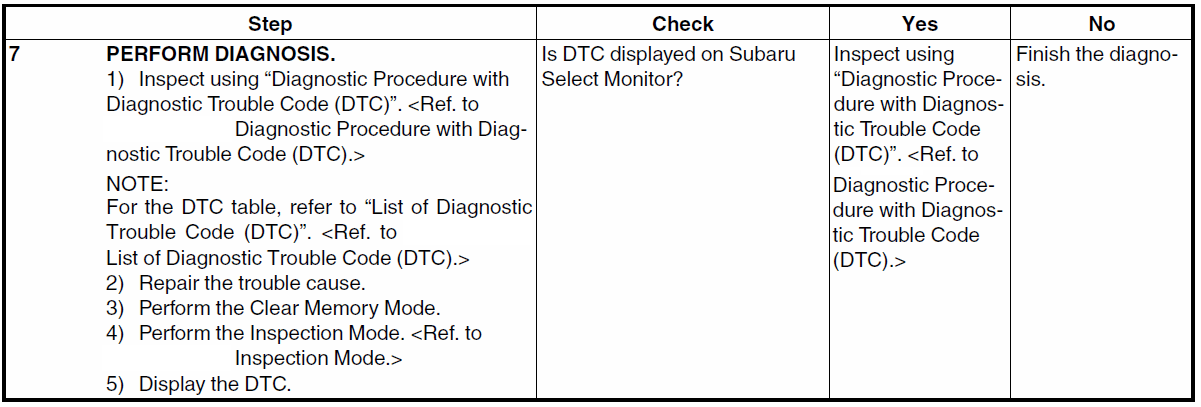

Fig 2: Automatic Transmission Diagnostic Procedure (2 Of 2)
G00510798Courtesy of SUBARU OF AMERICA, INC.
