Wheel Arch Height

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.
  1. Park the vehicle on a level surface.
  2. Empty the vehicle so that it is at "curb weight". (Empty the luggage compartment, load the spare tire, jack and service tools, and fill up the fuel tank.)
  3. Set the steering wheel in a straight-ahead position, and stabilize the suspensions by moving the vehicle in a straight line for 5 m (16 ft) or more.
  4. Suspend a thread from the wheel arch (point "A" in the figure below) and affix at a position directly above the center of wheel.
  5. Measure the distance between the point "A" and the center of wheel.

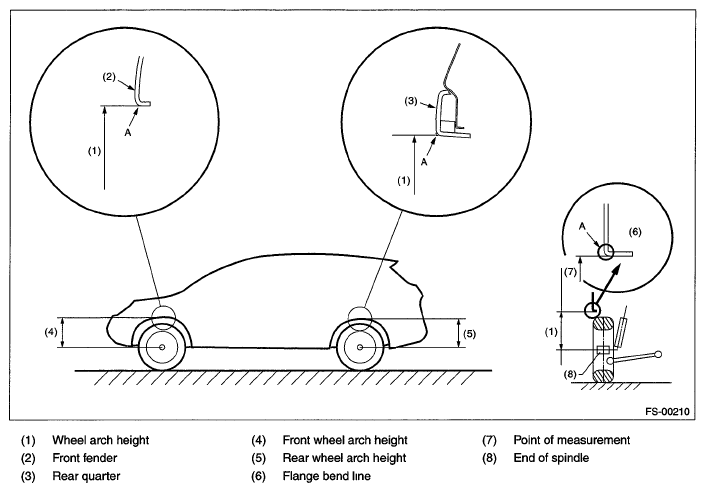

    Fig 1: Identifying Wheel Arch Height
    G06343154Courtesy of SUBARU OF AMERICA, INC.
    WHEEL ARCH HEIGHT SPECIFICATION CHART

    Wheel arch height specification mm (in) (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in ))
    Front 452 (17.8)
    Rear 449 (17.7)
