Combination Meter: Disassembly: Notes
WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
- Be careful not to apply excessive force to the trip knob.
- Be sure not to touch the meter indicator needle.

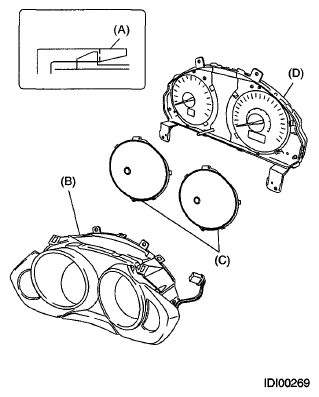

Disengage the claw (A), and remove the visor assembly and meter case cover (B), and cover glass (C) from the meter case assembly (D).
