Radiator And Radiator Fan

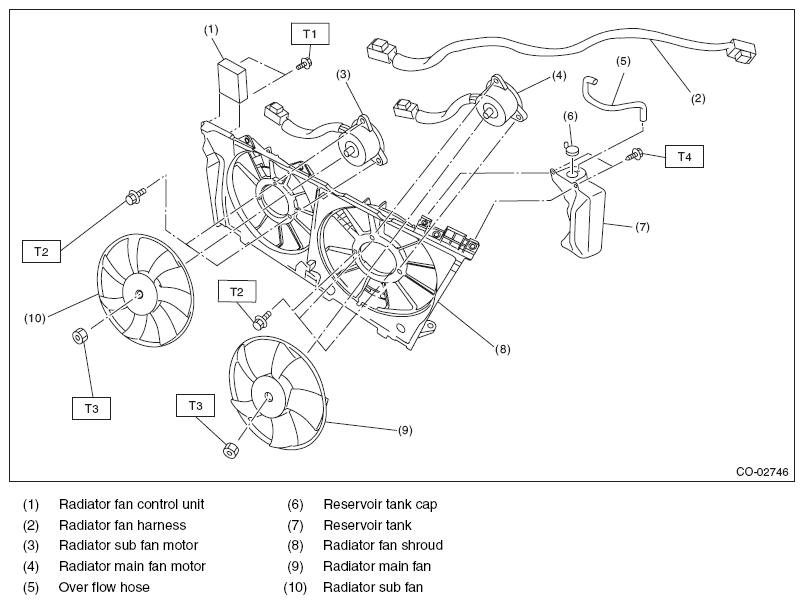

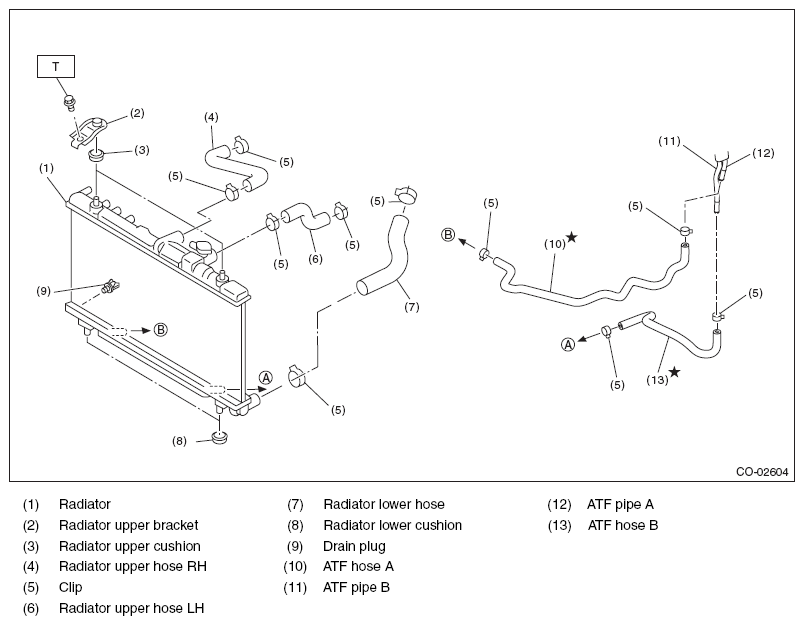

Fig 1: Exploded View Of Radiator

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 12 (1.2, 8.9)

Fig 2: Exploded View Of Radiator Fan

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2.6 (0.3, 1.9)

T2: 3.8 (0.4, 2.8)

T3: 6.3 (0.6, 4.6)

T4: 7.5 (0.8, 5.5)
