Radiator Fan Control Unit: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the radiator fan control unit.
    1. Disconnect the connector (A) from the radiator fan control unit.
    2. Remove screws which secure the radiator fan control unit.

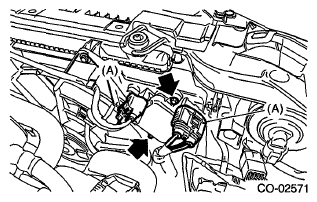

      Fig 1: Locating Radiator Fan Control Unit Connector
      G06651538Courtesy of SUBARU OF AMERICA, INC.
