Parking Pawl: Removal

  1. Remove the transmission assembly from the vehicle. Refer to , REMOVAL , Automatic Transmission Assembly.
  2. Shift the range select lever to "N" range.
  3. Remove the extension case. Refer to , REMOVAL , Extension Case.
  4. Remove the parking pawl shaft, return spring and parking pawl.

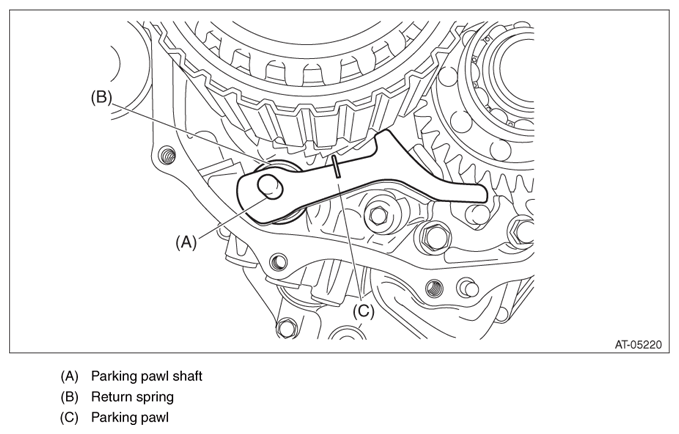

    Fig 1: Identifying Parking Pawl Shaft, Return Spring And Parking Pawl (View 1 Of 2)
    G07913484Courtesy of SUBARU OF AMERICA, INC.
