Front Hood Lock Assembly: Removal

Open the front hood.
Remove the front bumper face. Refer to FRONT BUMPER .
Remove the clips and remove the air intake duct.

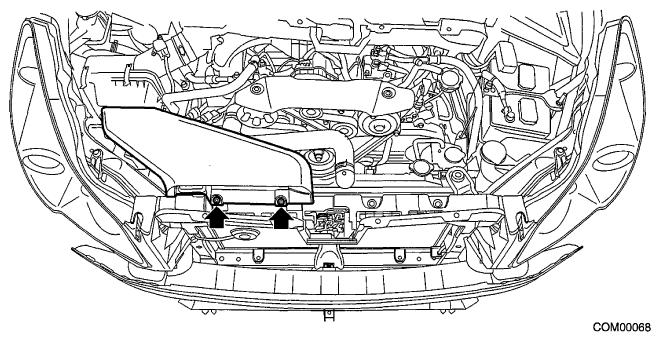

Fig 1: Locating Air Intake Duct And Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips and remove the grille bracket.

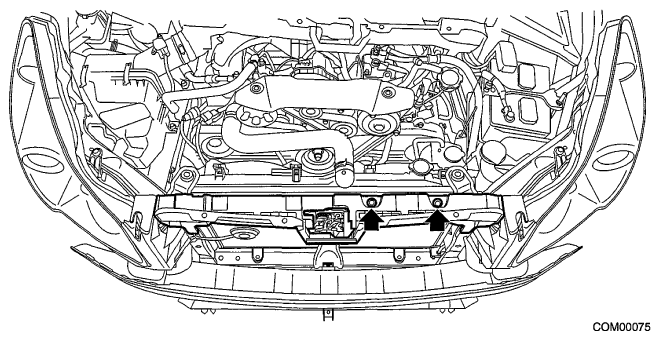

Fig 2: Locating Grille Bracket And Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the front hood lock assembly.
1. Remove the bolt.

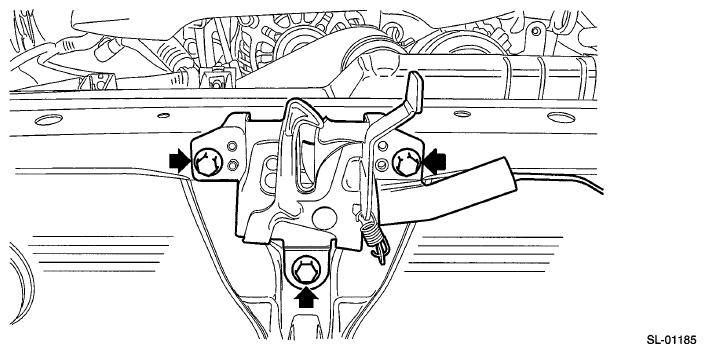

  Fig 3: Locating Front Hood Lock Assembly Bolts
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the release cable, and detach the front hood lock assembly.

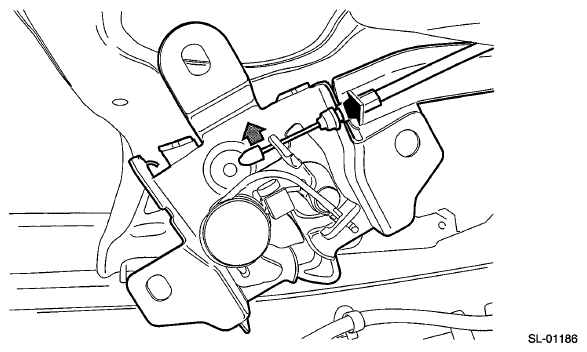

  Fig 4: Detaching Front Hood Lock Assembly
  Courtesy of SUBARU OF AMERICA, INC.
