Front Outer Handle: Removal

1. Raise the front door glass to the top position.
2. Remove the door trim. Refer to DOOR TRIM .
3. Remove the sealing cover.
   CAUTION:

   • Carefully remove the butyl tape. Excessive force will easily break the cover.
   • If the sealing cover gets broken, replace it with a new part.
     Fig 1: Removing Sealing Cover

     Courtesy of SUBARU OF AMERICA, INC.
4. Release the rod from the rod clamp of outer handle.
   Fig 2: Locating Outer Handle Rod Clamp

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the door outer handle cover.

   Preparation tool: TORX® T30

   1. Remove the plug to the rear of the door panel.
   2. Loosen the TORX® bolt and remove the door outer handle cover.
      Fig 3: Removing Door Outer Handle Cover

      Courtesy of SUBARU OF AMERICA, INC.
6. Move the front outer handle to the rear and remove the front outer handle.
   CAUTION: Do not apply excessive force to remove the handle from the door panel. The door panel may become deformed.

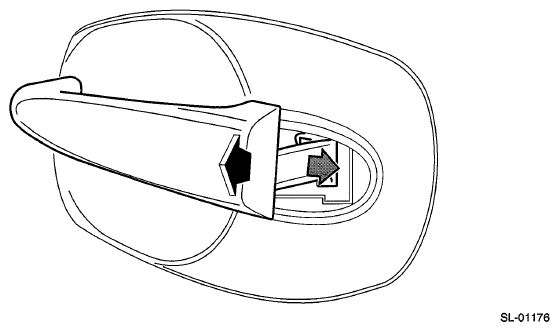

   Fig 4: Removing Front Outer Handle

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the frame assembly.

Preparation tool: TORX® T30

1. Remove the outer spacer.

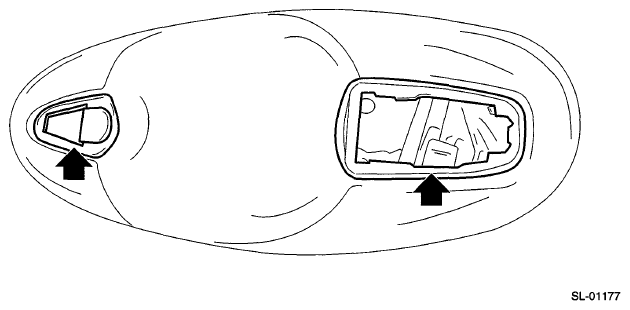

   Fig 5: Locating Outer Spacer

   Courtesy of SUBARU OF AMERICA, INC.
2. Loosen the TORX® bolt and remove the frame assembly from the door panel.

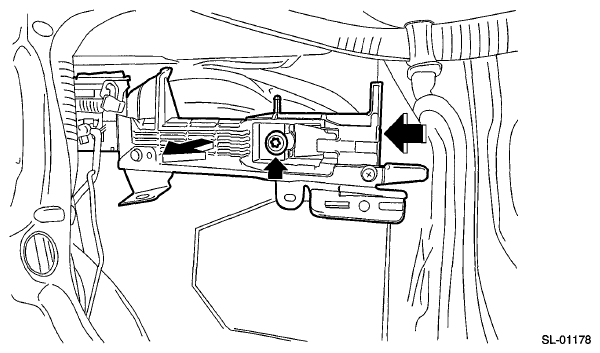

   Fig 6: Removing Frame Assembly From Door Panel

   Courtesy of SUBARU OF AMERICA, INC.
