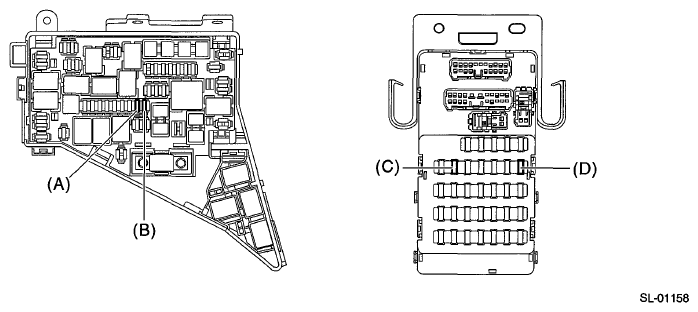

Relay and Fuse: Location
| Main fuse box | Fuse 15 A (K/L) | (A) |
| Fuse 20 A (K/L, SEC) | (B) | |
| Relay & fuse box | Fuse 7.5 A (SEC) | (C) |
| Fuse 15 A (SEC) | (D) |
NOTE:
For other related fuses, refer to the wiring diagram. Refer to SYSTEM WIRING DIAGRAMS
or SYSTEM WIRING DIAGRAMS
.
