Front Hub Unit Bearing: Assembly

  1. Install the hub unit bearing to the ST securely.

    PREPARATION TOOL:

    ST: HUB STAND (927080000)

  2. Using a press, press the new hub bolts (b) until their seating surfaces contact the hub unit bearing (a).

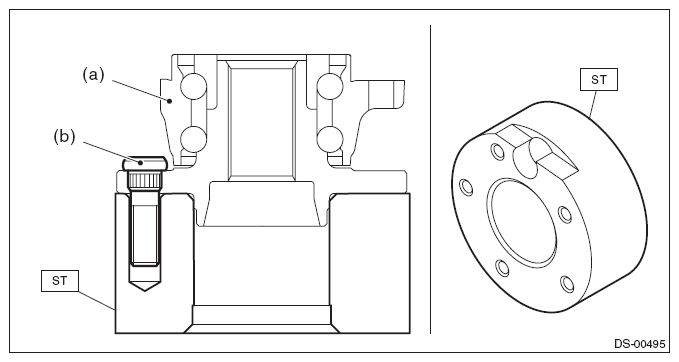

    Fig 1: Pressing Hub Bolts
    G07914110Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Use the 12 mm (0.47 in) dia. holes in the HUB STAND to prevent bolts from tilting.
