Front Drive Shaft Assembly

Model	Type of drive shaft	Axle diameter ø mm (in)	Axle length mm (in)
All models	AC + AAR	22.67 (0.89)	352.4 (13.87)

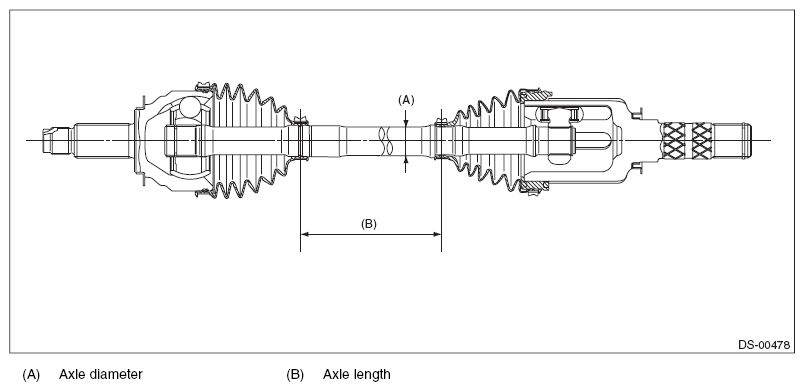

Fig 1: Identifying Front Drive Shaft Assembly Length

Courtesy of SUBARU OF AMERICA, INC.
