Engine Mounting: Removal

Change the front hood damper mounting position from (A) to (B), and completely open the front hood.
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

Fig 1: Identifying Front Hood Damper Mounting Position
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery.

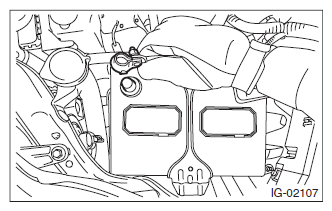

Fig 2: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator main fan motor assembly and radiator sub fan motor assembly. Refer to REMOVAL , and Refer to REMOVAL
Lift up the vehicle.
Remove the under cover. Refer to REMOVAL
Remove the front exhaust pipe. Refer to REMOVAL
Lower the vehicle.
Support the engine with a lifting device and wire ropes.

Fig 3: Supporting Engine With Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Remove the stopper rod.

Fig 4: Identifying Stopper Rod
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt and nut which secure engine mounting to the cradle.

Fig 5: Locating Engine Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
CAUTION: When lifting up the vehicle, raise up wire ropes at the same time.
Remove the bolts which secure the engine mounting onto the engine, and remove the engine mounting.

Fig 6: Locating Engine Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
