Diagnostic Method 2

Detect the malfunction by calculating the average amplitude of λ.

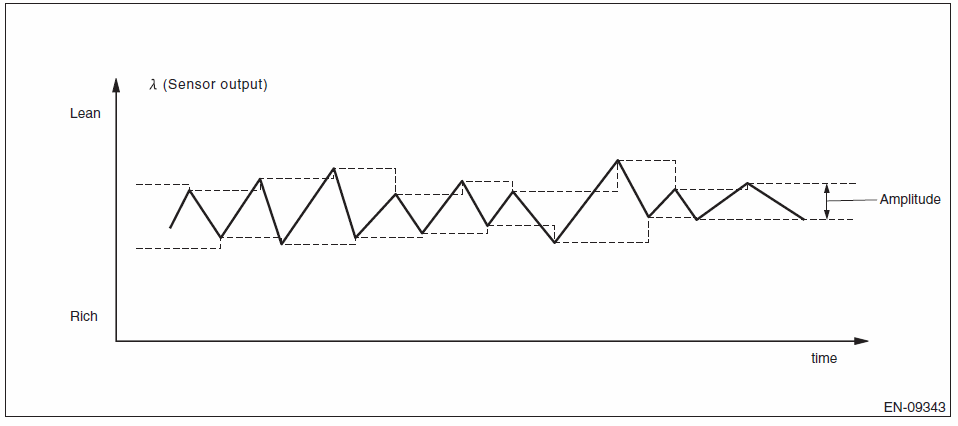

Fig 1: Average Amplitude Graph

Courtesy of SUBARU OF AMERICA, INC.

• Abnormality Judgment

  Judge as NG when the following conditions are established.

  JUDGMENT VALUE CHART



  Malfunction Criteria	Threshold Value	DTC
  Average value for λ amplitude	> 0.055	P015A and P015B

  Time Needed for Diagnosis:  60 seconds

  Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.

• Normality Judgment

  Judge as OK and clear the NG if the following conditions are established.

  JUDGMENT VALUE CHART



  Malfunction Criteria	Threshold Value	DTC
  Average value for λ amplitude	≤ 0.055	P015A and P015B

  Time Needed for Diagnosis:  60 seconds
