Airbag Control Module

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

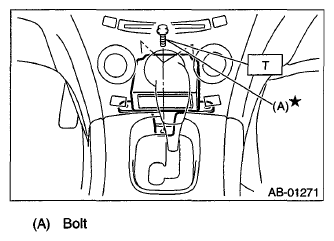

Fig 1: Identifying Airbag Control Module Bolt

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Do not reuse mounting bolts and nuts.

Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)
